Lower Front Center of the Vehicle Components

Lower Front Center of the Vehicle Components

Items
1. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor
2. M60A Active Grille Air Shutter 1 Motor Module (VRI) M60A Active Grille Air Shutter 1 Motor Module

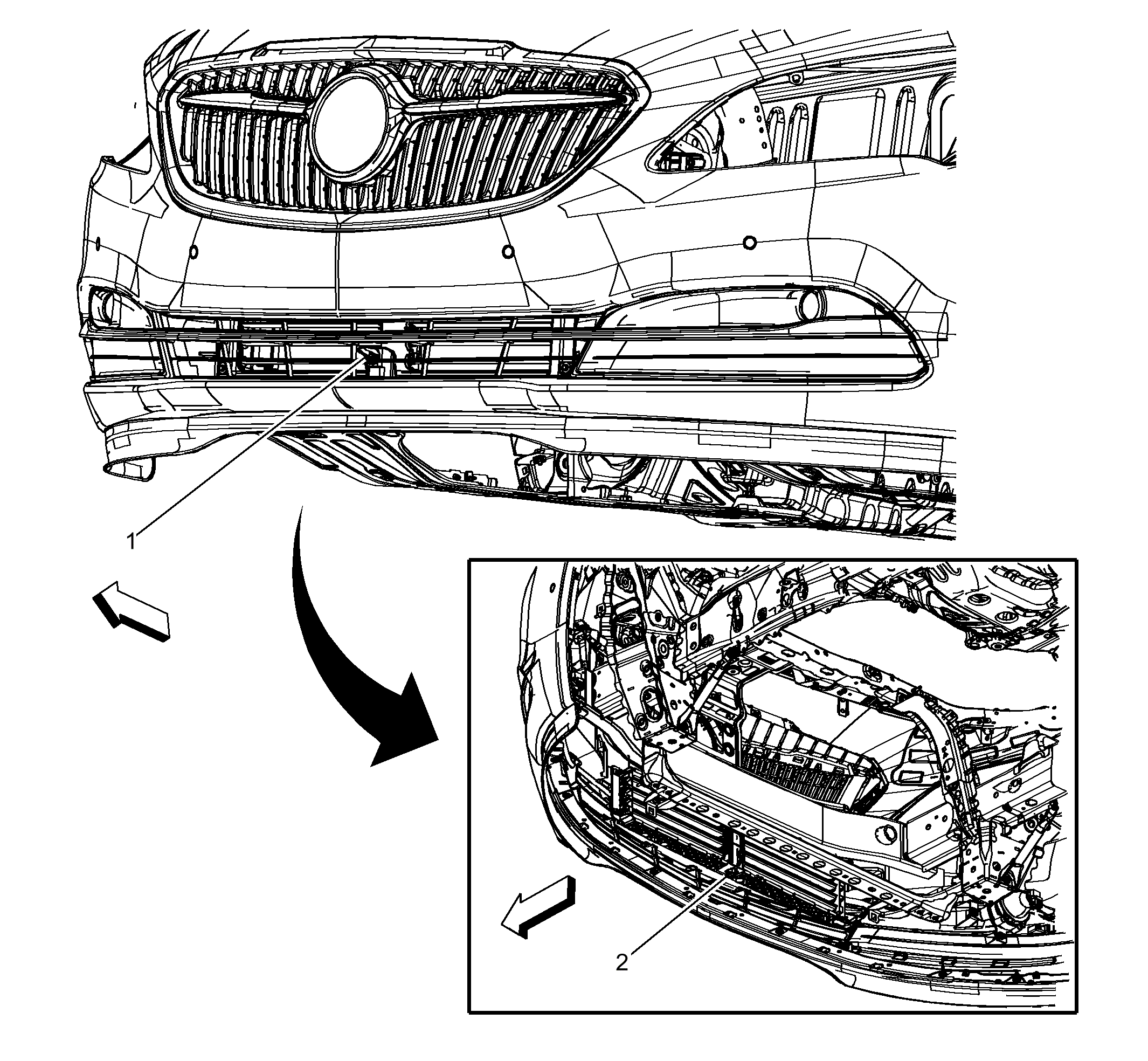

Fig 1: Lower Front Center of the Vehicle Components
GM4318985Courtesy of GENERAL MOTORS COMPANY
