Chassis Control Module Bracket Replacement

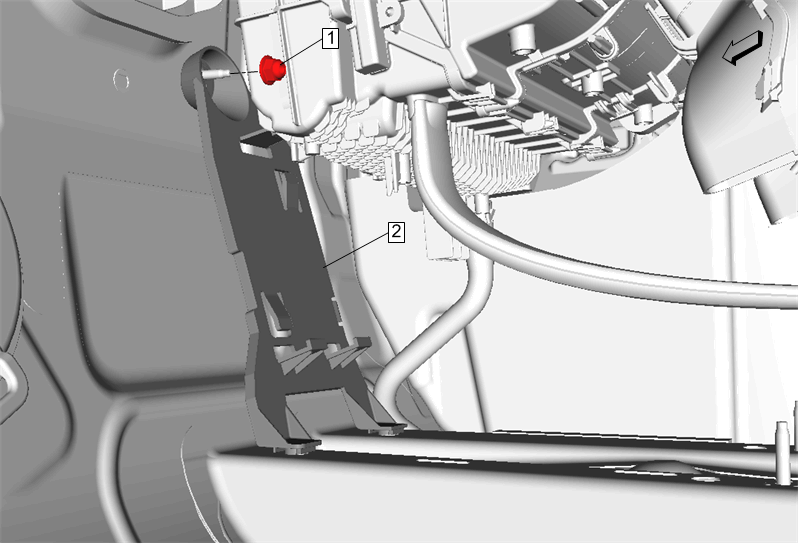

Fig 1: Chassis Control Module Bracket
GM4452683Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Chassis Control Module Replacement
1 Chassis Control Module Bracket Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Control Module Bracket
