Chassis Control Module Replacement

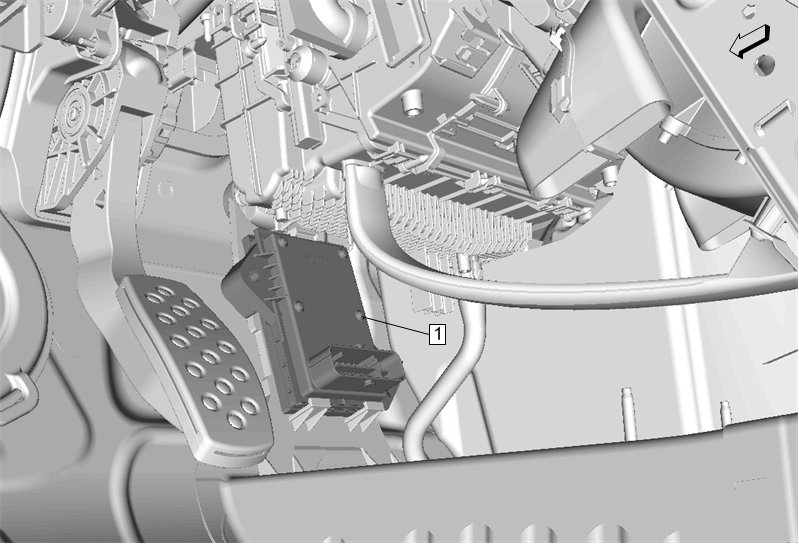

Fig 1: Chassis Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Panel Carpet - Left Side - Reposition - Front Floor Panel Carpet Replacement - Left Side
1	Chassis Control Module Procedure Release retaining tab. Disconnect the electrical connector. If replacing, reprogram the module . Control Module References

Callout

Component Name

Preliminary Procedure
Front Floor Panel Carpet - Left Side - Reposition - Front Floor Panel Carpet Replacement - Left Side

Chassis Control Module

Procedure

Release retaining tab.
Disconnect the electrical connector.
If replacing, reprogram the module . Control Module References
