Engine Control Module Bracket Replacement

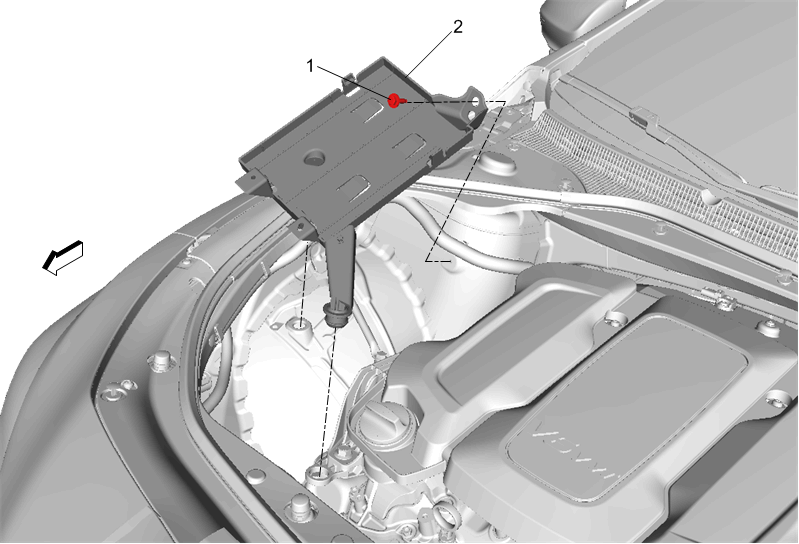

Fig 1: Engine Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Control Module Replacement Unclip wiring harness from engine control module bracket.
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 9 (80 lb in)
2	Engine Control Module Bracket Procedure Lift up on bracket to remove from retainers.

Callout

Component Name

Preliminary Procedures

Engine Control Module Bracket Bolt

CAUTION:

Tighten
9 (80 lb in)

Engine Control Module Bracket
Procedure
Lift up on bracket to remove from retainers.
