Fuel Pump Power Control Module Replacement

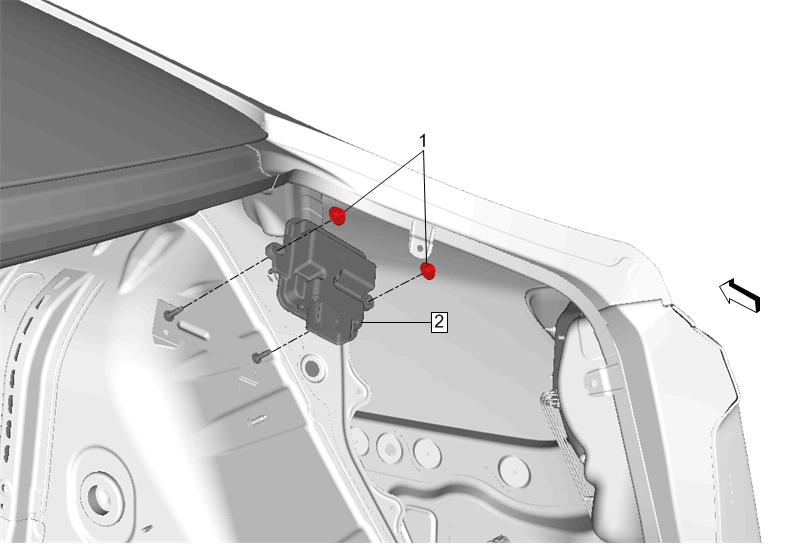

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (With LHN)Rear Compartment Side Trim Replacement - Right Side (With LGX)
1	Fuel Pump Power Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module . Control Module References

Callout

Component Name

Fuel Pump Power Control Module Fastener

CAUTION:

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure
