Installation Procedure

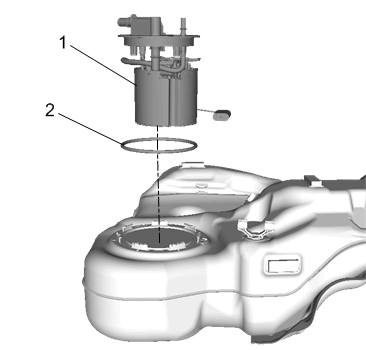

    Fig 1: Fuel Tank Fuel Pump Module & O Ring
    GM4444611Courtesy of GENERAL MOTORS COMPANY
  1. O-Ring 2 - Install NEW
  2. Fuel Tank Fuel Pump Module 1 - Install

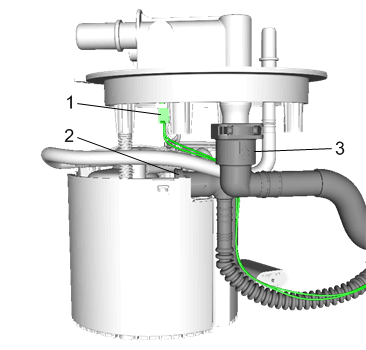

    3. Fig 2: Fuel Sender Wiring Harness And Fuel Pump Vent Pipe
    GM4444613Courtesy of GENERAL MOTORS COMPANY
  3. Fuel Pump Vent Pipe 3 - Connect - Plastic Collar Quick Connect Fitting Service
  4. Fuel Sender 2 - Connect - Plastic Collar Quick Connect Fitting Service
  5. Fuel Sender Wiring Harness 1 - Connect

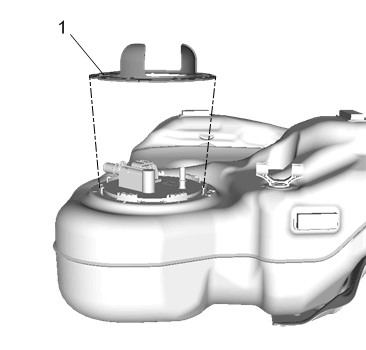

    6. Fig 3: Fuel Pump Lock Ring
    GM4444609Courtesy of GENERAL MOTORS COMPANY
  6. Fuel Pump Lock Ring 1 - Install - CH 45722  Fuel Sender Lock Ring Wrench

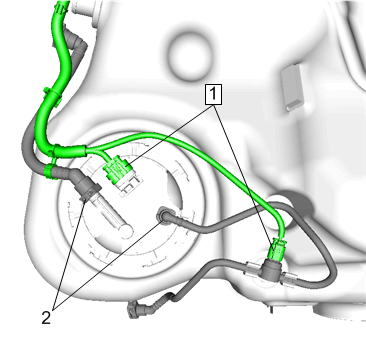

    7. Fig 4: Fuel Tank Fuel Pump Module Electrical Connector
    GM4444604Courtesy of GENERAL MOTORS COMPANY
  7. Fuel and EVAP Pipe 2 - Connect - Plastic Collar Quick Connect Fitting Service
  8. Electrical Connector 1 @ Fuel Tank Fuel Pump Module - Connect
  9. Fuel Tank - Install - Fuel Tank Replacement (AWD)
