Right Front of the Engine Components (LFV)

Right Front of the Engine Components (LFV)

Items
1. M64 Starter Motor M64 Starter Motor X1 (LFV+KL9)M64 Starter Motor X1 (LFV-KL9)
2. G13 Generator G13 Generator X1 (LFV)G13 Generator X2 (LFV)

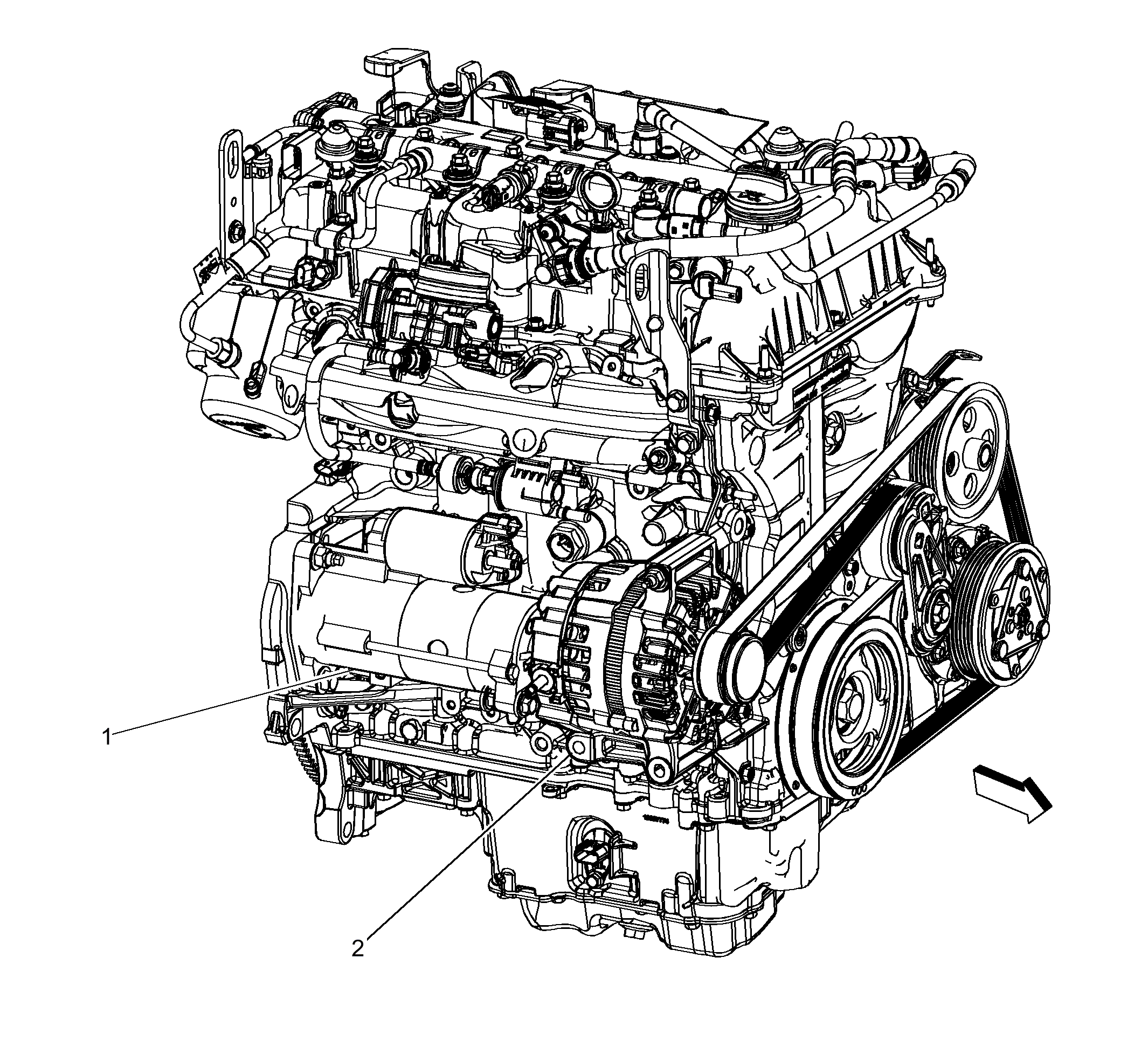

Fig 1: Right Front of the Engine Components (LFV)
GM4319022Courtesy of GENERAL MOTORS COMPANY
