Power Transfer Unit Intermediate Drive Shaft Components Installation
Power Transfer Unit Intermediate Drive Shaft Components Installation

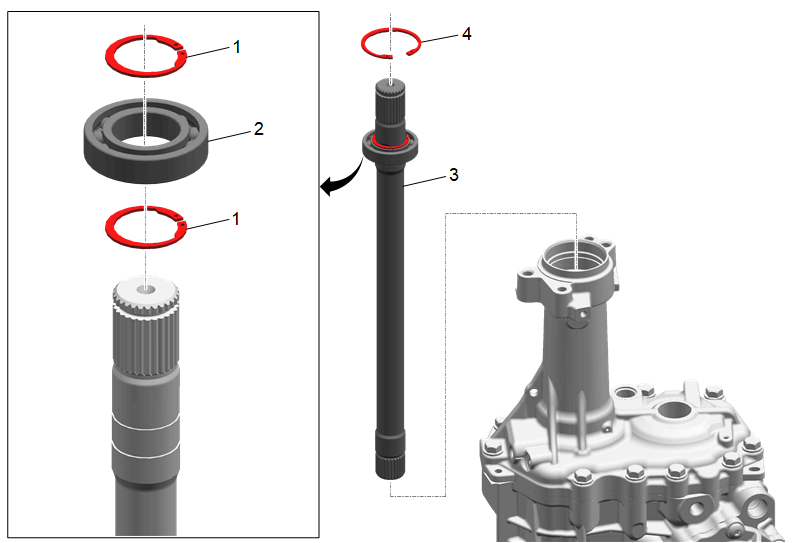

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 2 | Power Transfer Unit Intermediate Drive Shaft Bearing
NOTE:
Use a press to install the bearing to the shaft. |
| 3 | Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 4 | Power Transfer Unit Intermediate Drive Shaft Assembly |
| 5 | Power Transfer Unit Intermediate Drive Shaft Retainer |
