Front Seat Heater Control Module Bracket Replacement

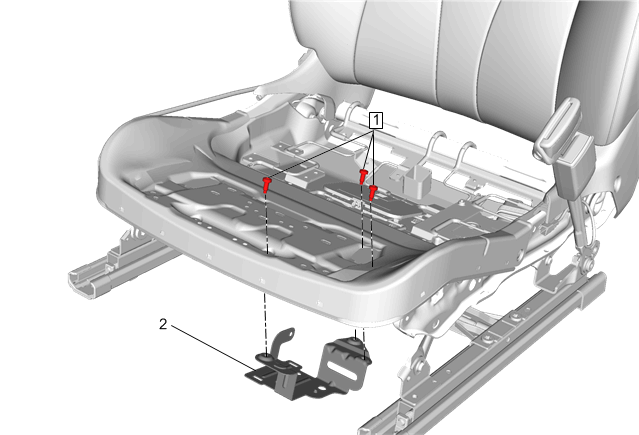

Fig 1: Front Seat Heater Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Driver or Passenger Seat Back Cover and Pad Replacement
1	Front Seat Heater Control Module Bracket Fastener CAUTION: Fastener Caution Tighten 4.7 N.m (42 lb in)
2	Front Seat Heater Control Module Bracket Procedure Transfer components as necessary.
