Lane Departure Warning (UFL) and Forward Collision Alert (UEU)

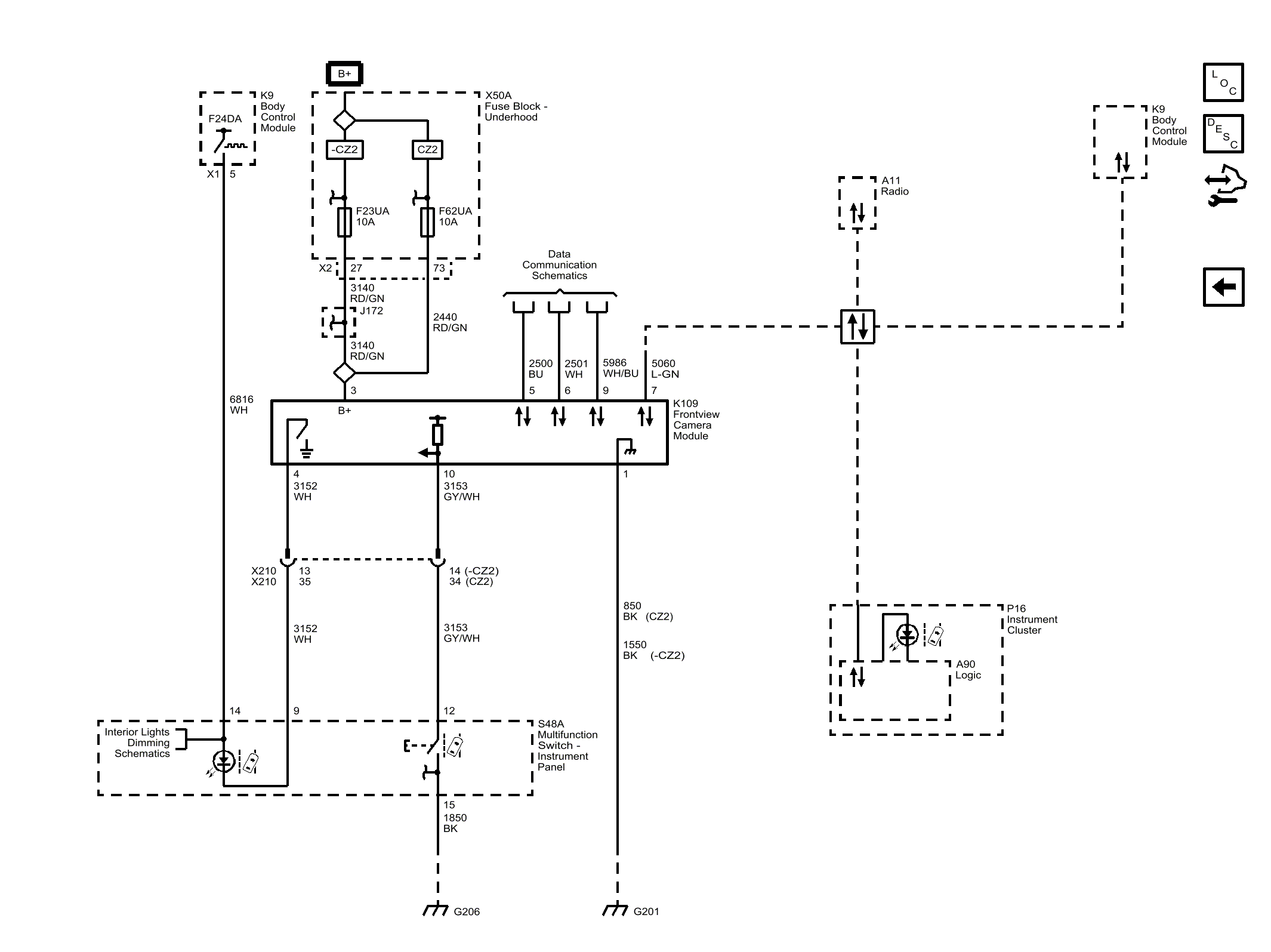

Fig 1: Lane Departure Warning (UFL) and Forward Collision Alert (UEU)
GM4423576Courtesy of GENERAL MOTORS COMPANY
