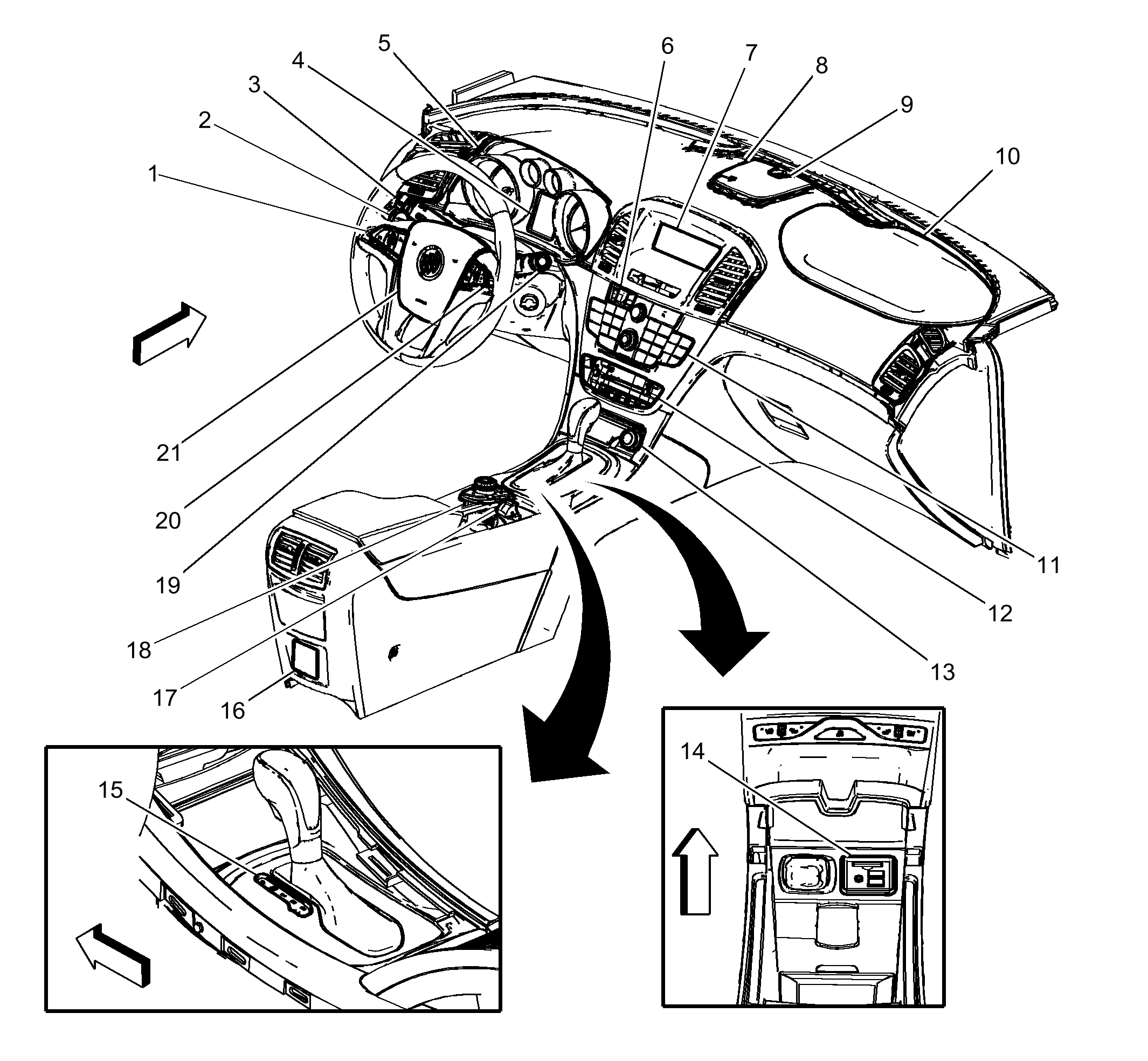

Instrument Panel and Floor Console Components
Instrument Panel and Floor Console Components
| Items |
|---|
| 1: S70L Steering Wheel Controls Switch - Left |
| 2: S30 Headlamp Switch S30 Headlamp Switch |
| 3: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 4: P9 Driver Information Center Display |
| 5: P16 Instrument Cluster P16 Instrument Cluster (UDC)P16 Instrument Cluster (UDD) |
| 6: S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 7: P17 Info Display Module P17 Info Display Module |
| 8: P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (U65)P19B Speaker - Center Instrument Panel (UQA)P19B Speaker - Center Instrument Panel (UQS) |
| 9: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 10: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 |
| 11: A22 Radio Controls |
| 12: A26 HVAC Controls A26 HVAC Controls |
| 13: X80G Accessory Power Receptacle - Instrument Panel X80G Accessory Power Receptacle - Instrument Panel |
| 14: X83 Auxiliary Audio Input X83 Auxiliary Audio Input |
| 15: P2 Transmission Shift Lever Position Indicator |
| 16: X81 Accessory Power Receptacle - 110V AC X81 Accessory Power Receptacle - 110V AC X1X81 Accessory Power Receptacle - 110V AC X2 |
| 17: S91 Park Brake Control Switch S91 Park Brake Control Switch |
| 18: S136 Infotainment Control Touchpad |
| 19: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 20: S70R Steering Wheel Controls Switch - Right |
| 21: F107 Steering Wheel Air Bag |
