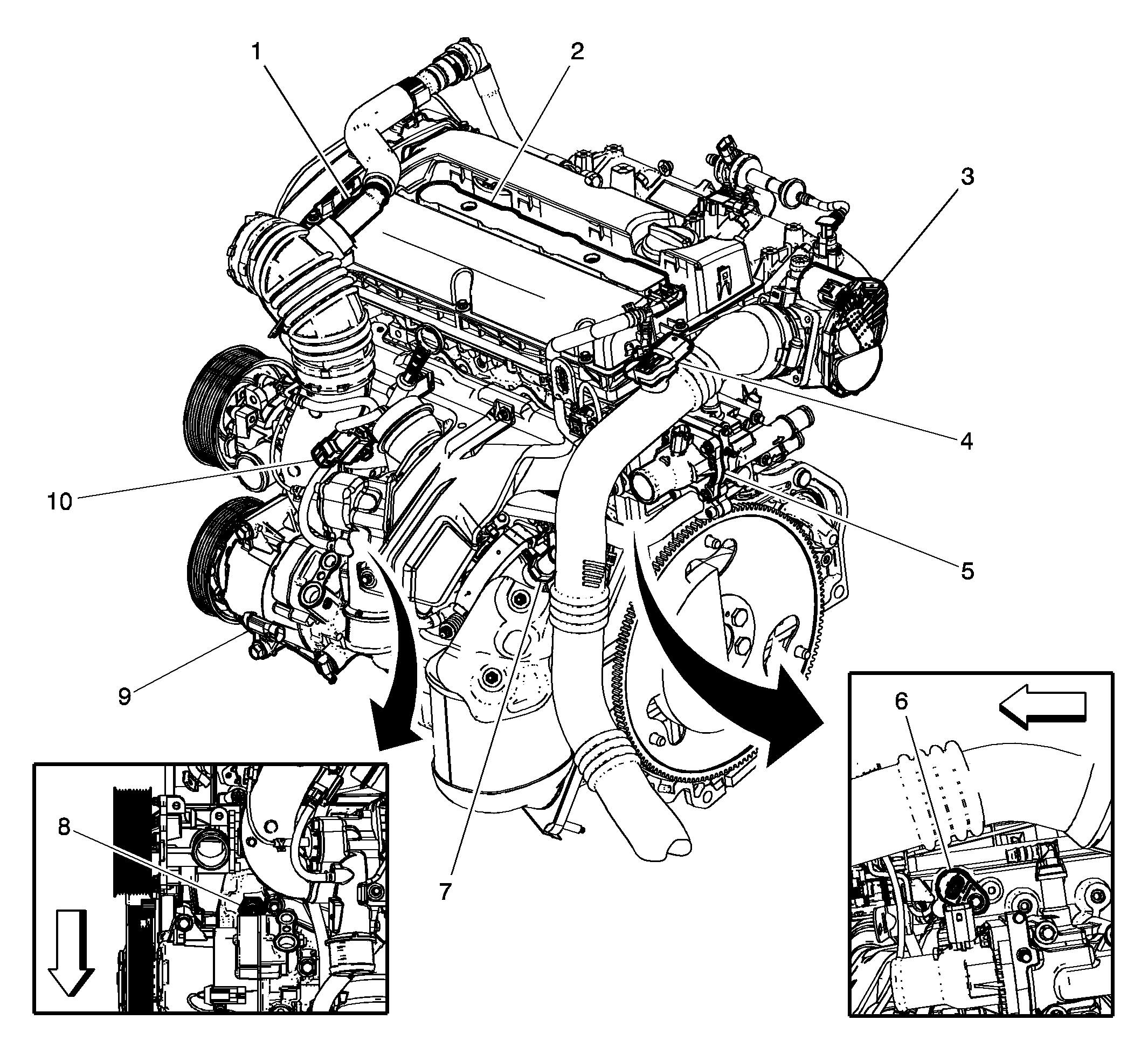

Engine Components - Front (LLU)
Engine Components - Front (LLU)
| Items |
|---|
| 1: E45 Positive Crankcase Ventilation Heater (LLU) E45 Positive Crankcase Ventilation Heater |
| 2: K35 Ignition Coil Module (LLU) K35 Ignition Coil Module |
| 3: Q38 Throttle Body Q38 Throttle Body (LLU) |
| 4: B111B Turbocharger Boost/Intake Air Temperature Sensor (LDK, LTG or LLU) B111B Turbocharger Boost/Intake Air Temperature Sensor (LLU) |
| 5: E41 Engine Coolant Thermostat Heater (LLU) E41 Engine Coolant Thermostat Heater |
| 6: B23 Camshaft Position Sensor (LLU) |
| 7: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LLU) |
| 8: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LLU) |
| 9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LTD/LDK)Q46 A/C Compressor Solenoid Valve (LEA)Q46 A/C Compressor Solenoid Valve (LTG) |
| 10: Q42 Turbocharger Wastegate Solenoid Valve (LTG, LDK or LLU) Q42 Turbocharger Wastegate Solenoid Valve (LLU) |
