Passive Entry and Passive Start Antennas (BTM)

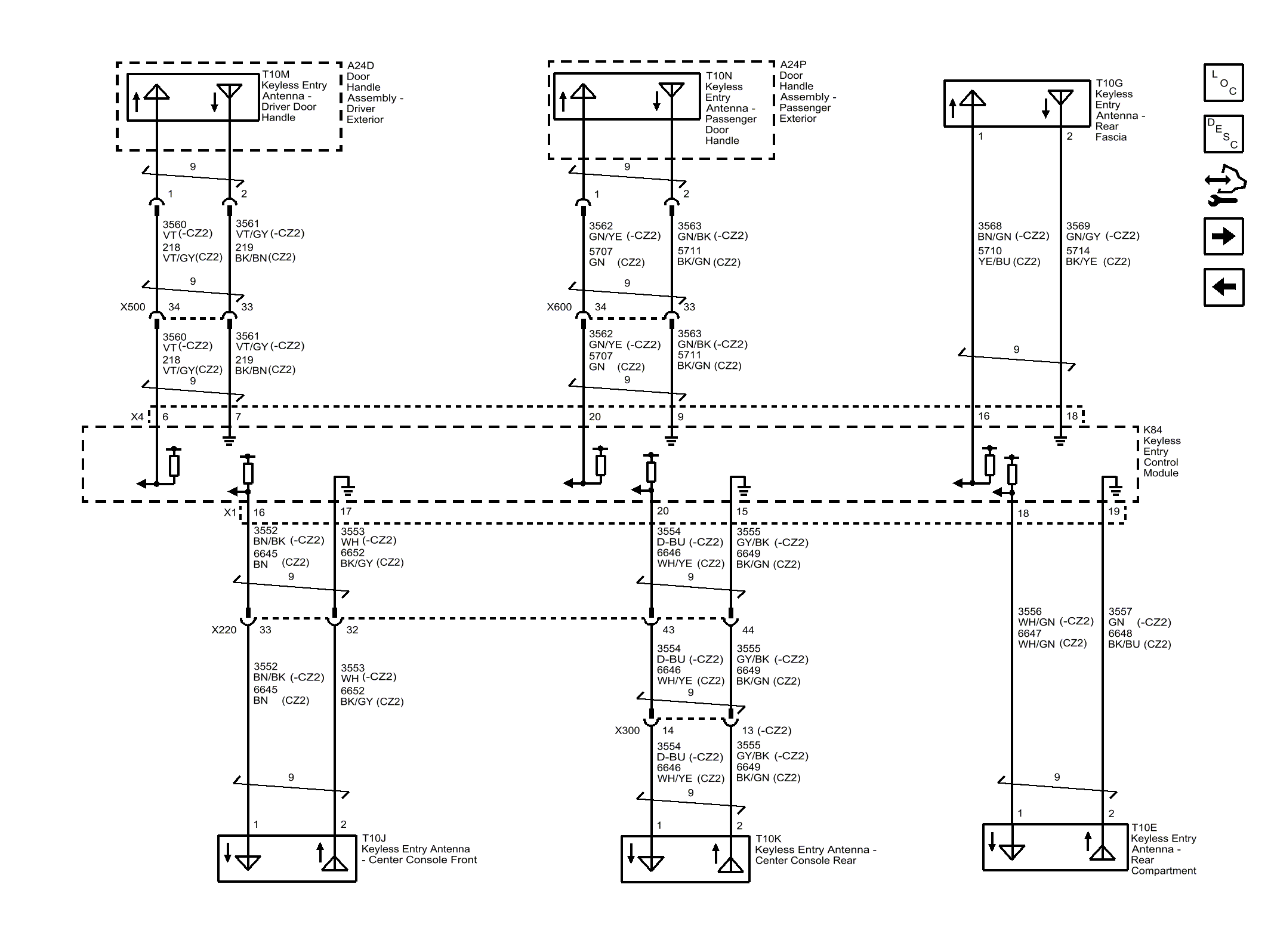

Fig 1: Passive Entry and Passive Start Antennas (BTM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
