Auxiliary Audio Input (CZ2 with IO7)

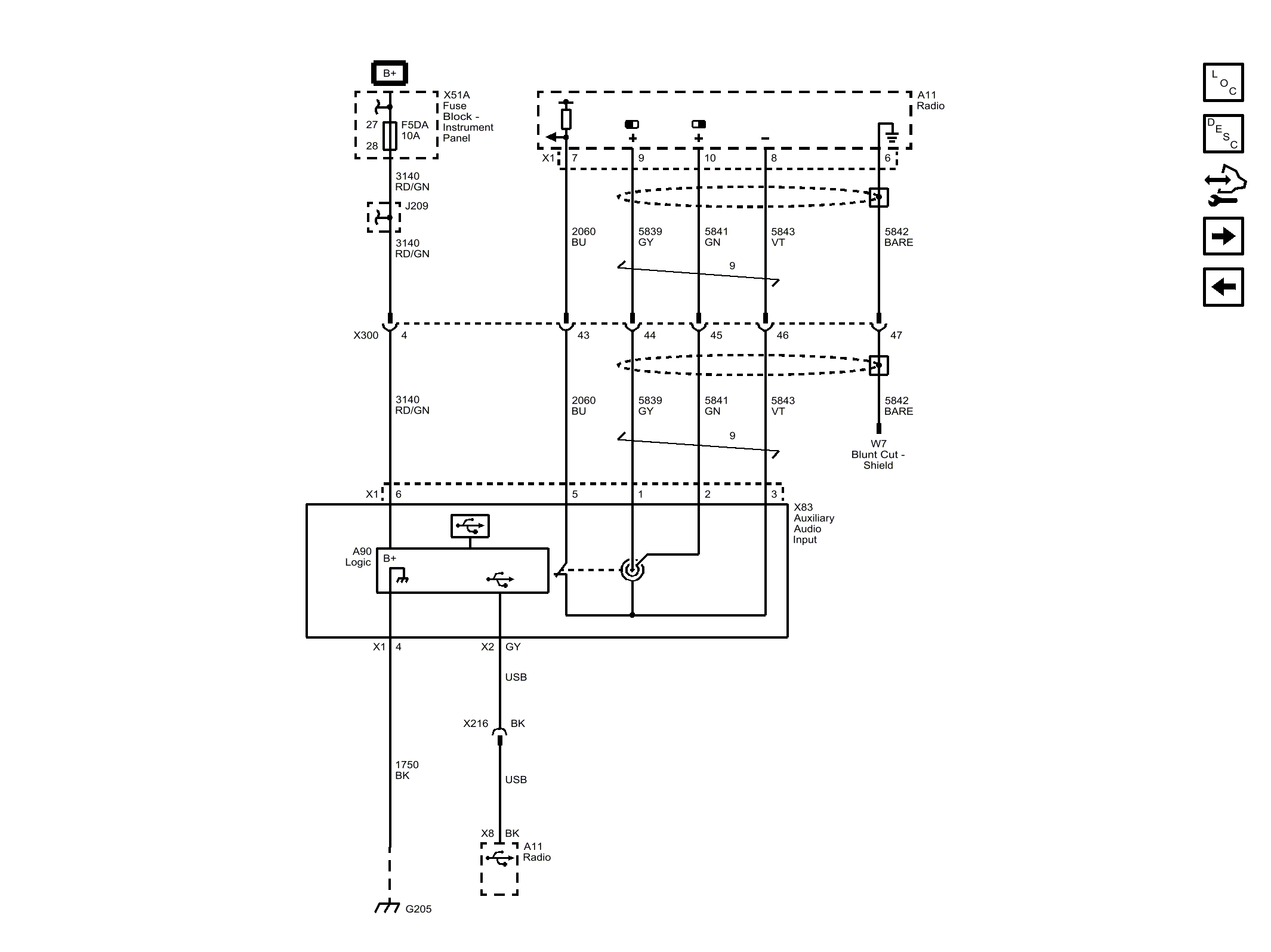

Fig 1: Auxiliary Audio Input (CZ2 with IO7)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
