Info Display (CZ2)

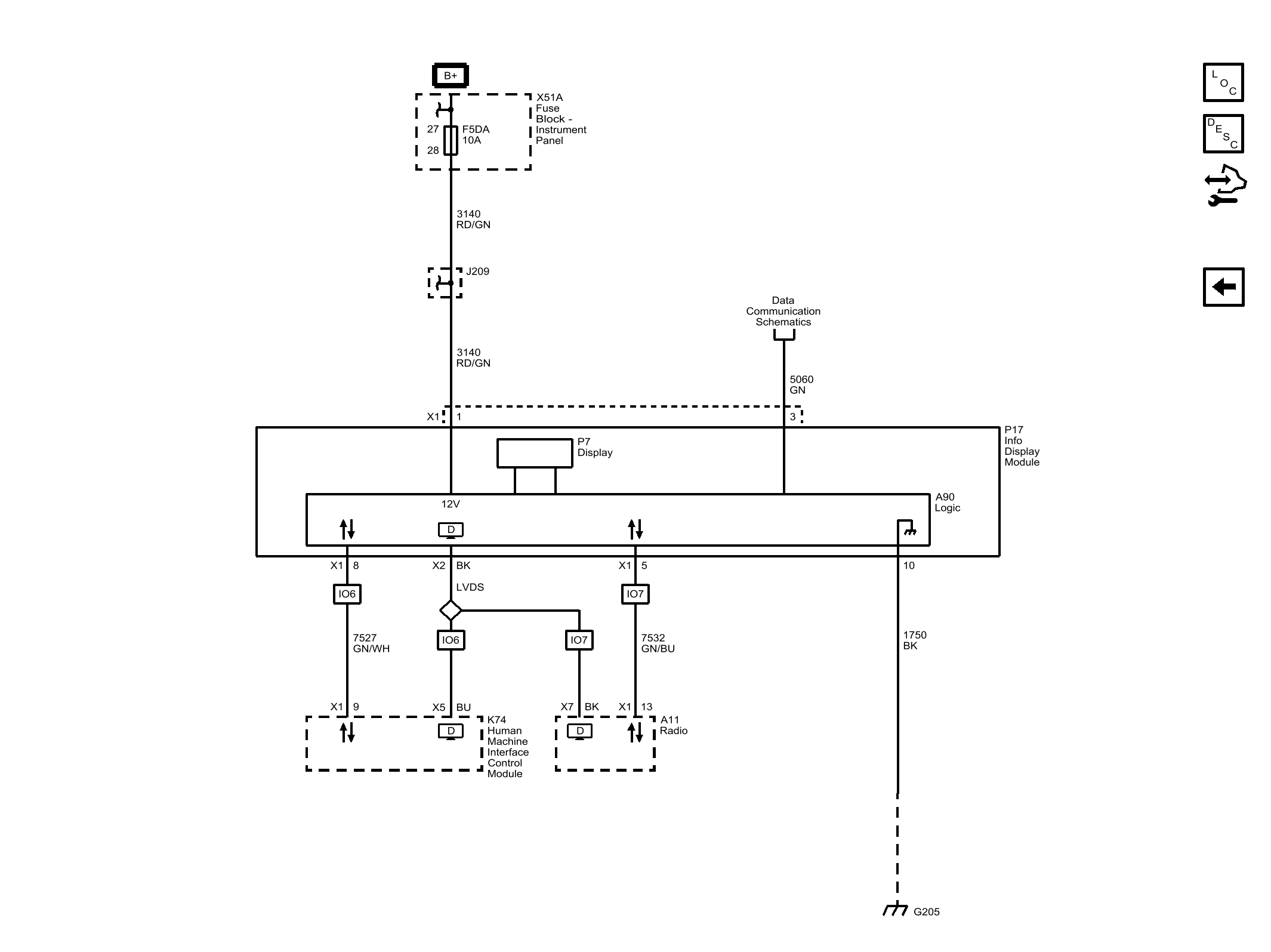

Fig 1: Info Display (CZ2)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
