Passive Entry and Passive Start Antennas (ATH with BTM)

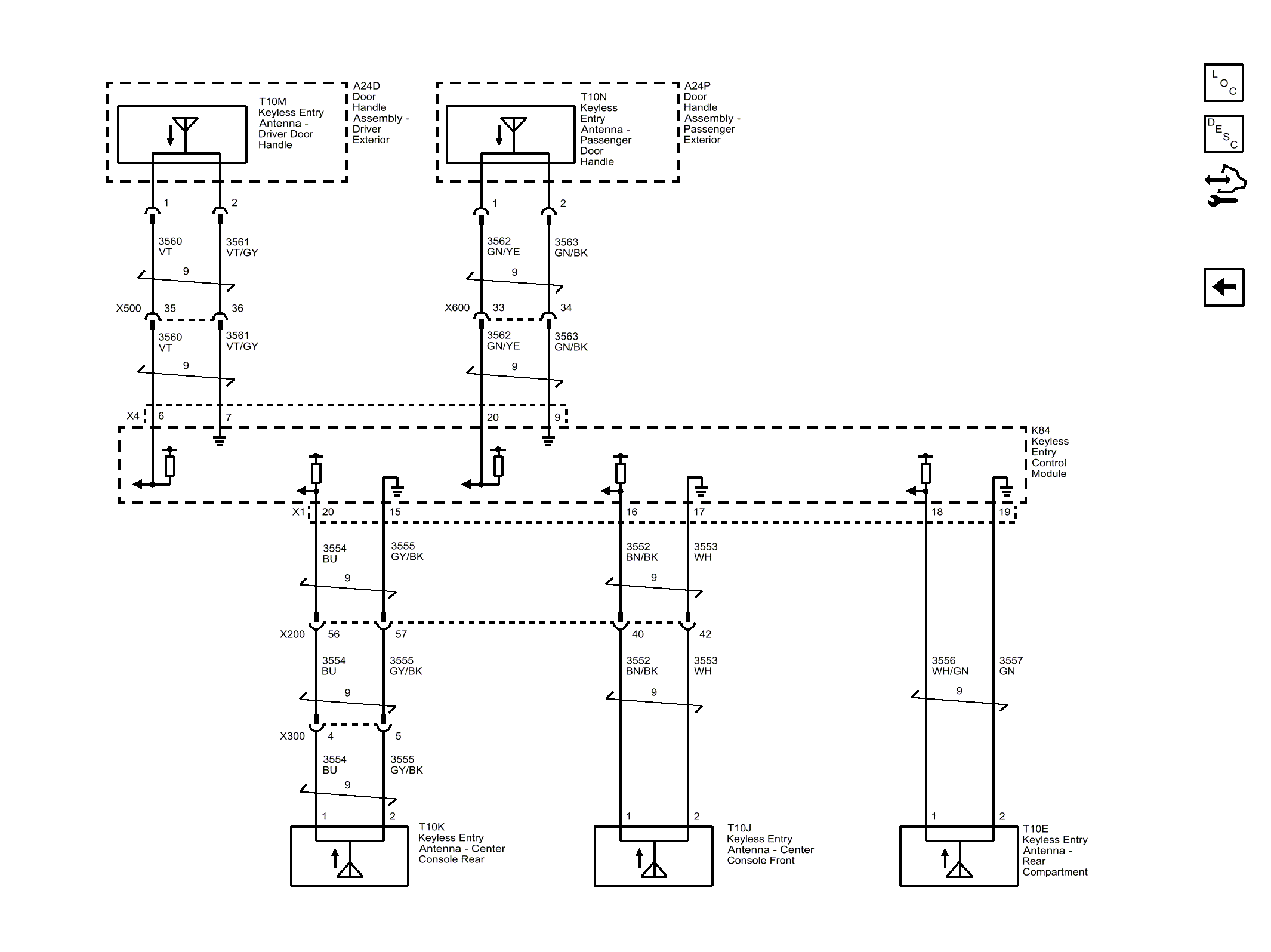

Fig 1: Passive Entry and Passive Start Antennas (ATH with BTM)
GM4502862Courtesy of GENERAL MOTORS COMPANY
