Power, Ground, Serial Data, Microphone, and Display (UE1)

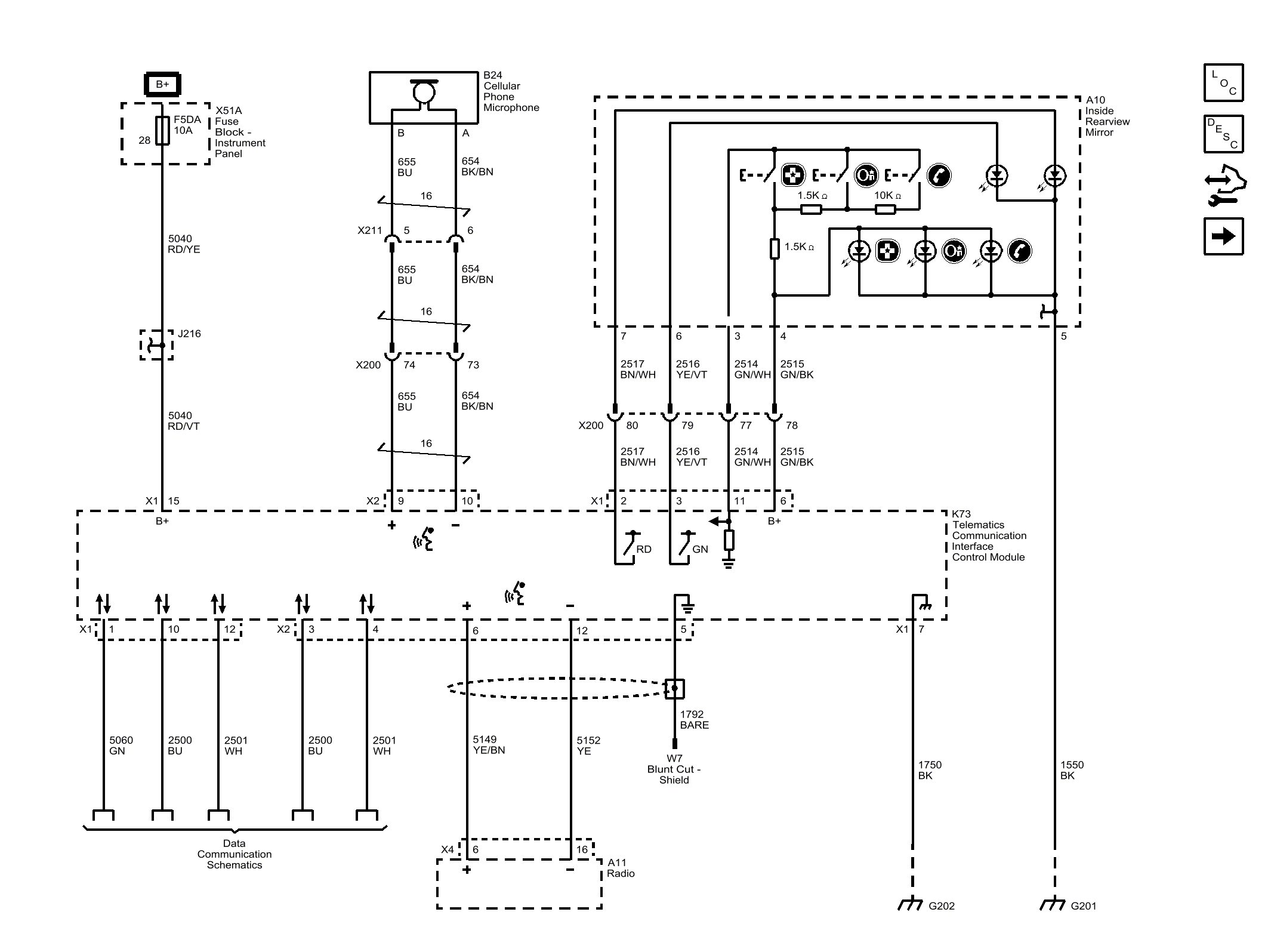

Fig 1: Power, Ground, Serial Data, Microphone, and Display (UE1)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
