Auxiliary Audio Input

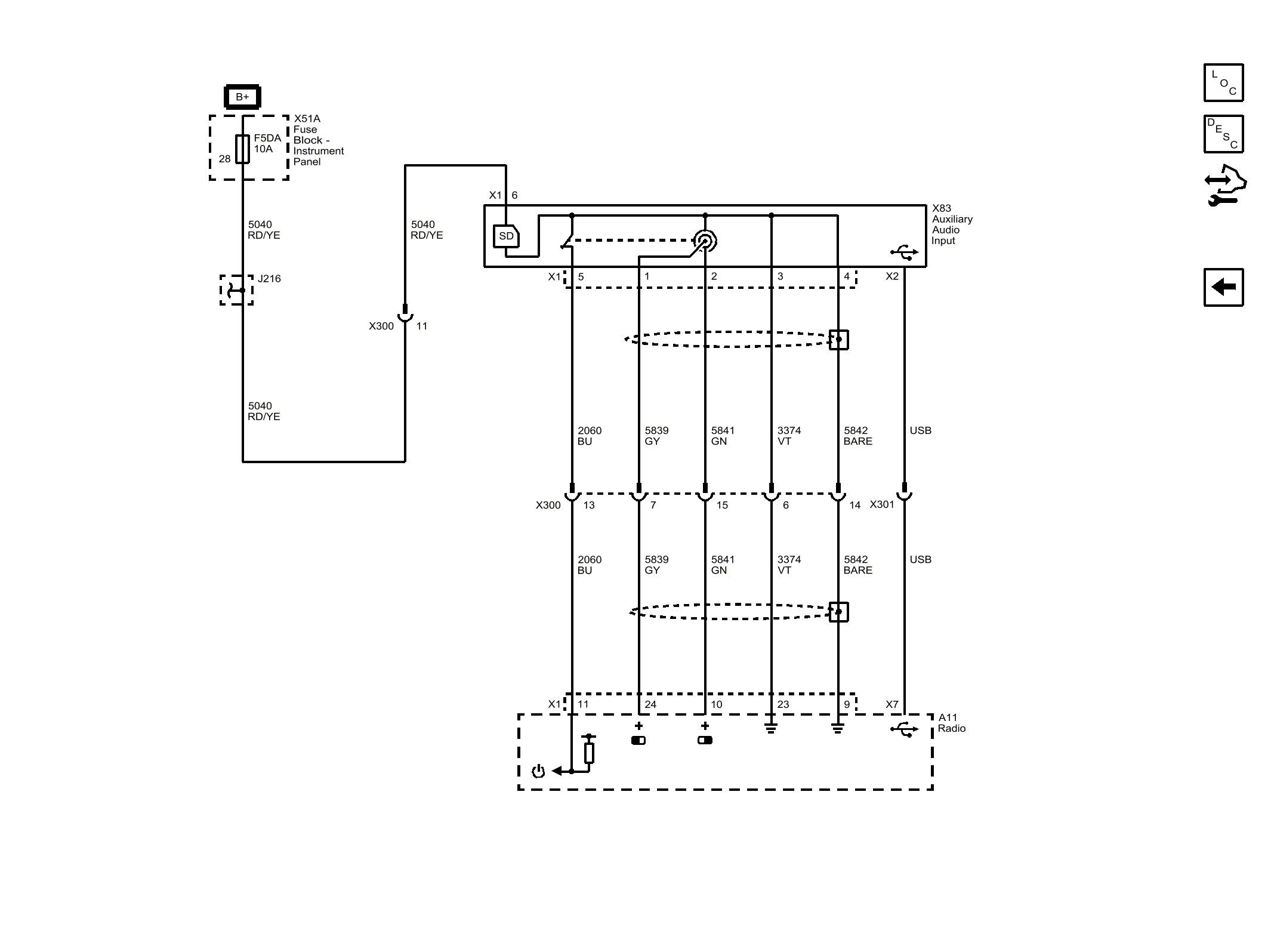

Fig 1: Auxiliary Audio Input
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
