Multifunction Relay Module Bracket Replacement

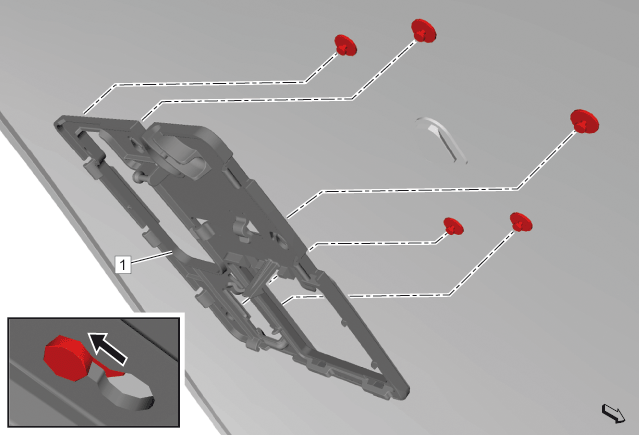

Fig 1: Multifunction Relay Module Bracket

GM4004335

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

If equipped, remove Front View Camera. Refer to Front View Camera Replacement
If equipped, remove Windshield Outside Moisture Sensor. Refer to Windshield Outside Moisture Sensor Replacement
Remove Inside Rearview Mirror. Refer to Inside Rearview Mirror Replacement

1

Multifunction Relay Module Bracket

Procedure

Disconnect the electrical connectors.
Slide the bracket upward to disengage tabs, gently pull from windshield.
