Low Speed Bus

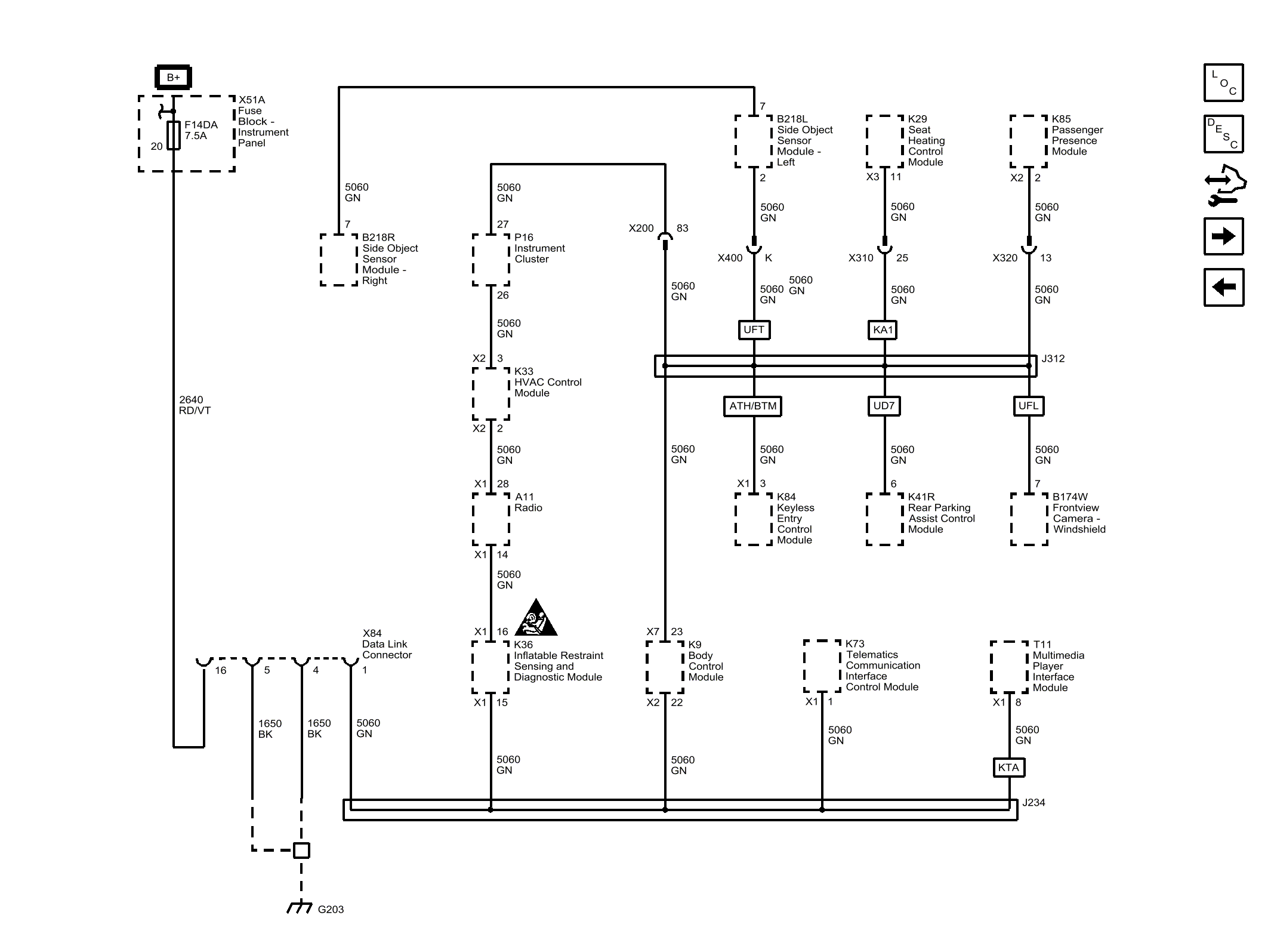

Fig 1: Low Speed Bus
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
