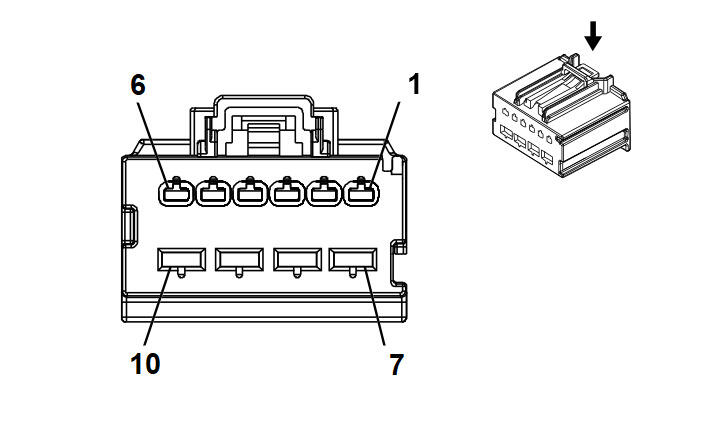

K99 Steering Column Position Control Module X2 (N38)
|
|
Connector Part Information
- Harness Type: Steering Column Jumper
- OEM Connector: 31372-1100
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 1.5, 2.8 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-4A (PU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
YE |
2153 |
Steering Column Telescope Motor Signal |
I |
- |
| 2 |
0.35 |
WH |
2152 |
Steering Column Telescope Motor Low Reference |
I |
- |
| 3 |
0.35 |
BN |
2154 |
Steering Column Tilt Motor Signal |
I |
- |
| 4 |
0.35 |
BU |
2157 |
Steering Column Tilt Motor Low Reference |
I |
- |
| 5 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
1 |
GN |
2098 |
Steering Column Telescope Motor Forward Control |
II |
- |
| 8 |
1 |
RD |
2110 |
Steering Column Telescope Motor Rearward Control |
II |
- |
| 9 |
1 |
OG |
2112 |
Steering Column Tilt Motor Down Control |
II |
- |
| 10 |
1 |
PU |
2111 |
Steering Column Tilt Motor Up Control |
II |
- |
