Radio Control Switch Replacement - Rear

WARNING: This page is about a different car, the 2017 GMC Acadia Limited, 2017 Chevrolet Traverse, and 2017 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

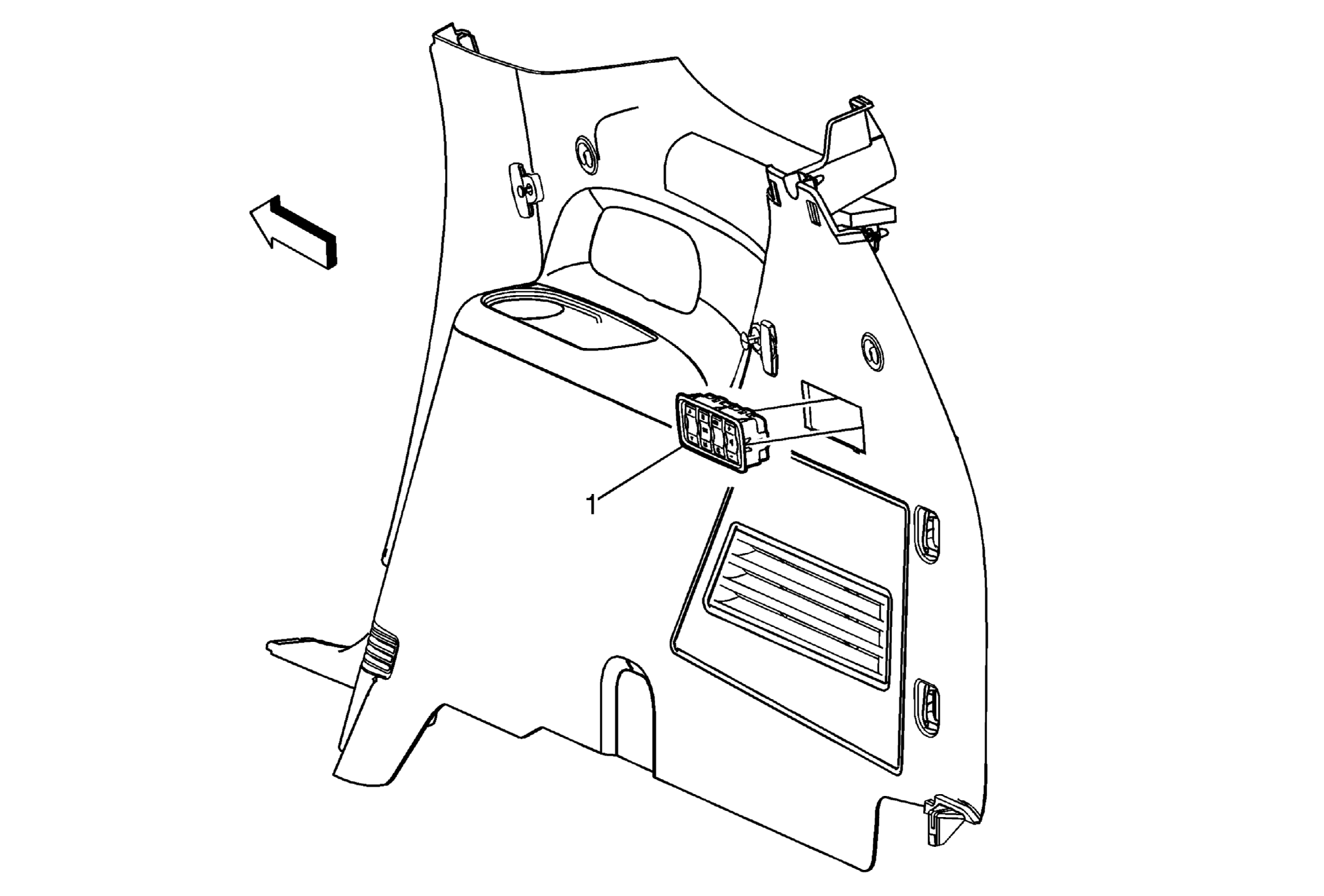

Fig 1: Radio Control Switch - Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
1	AM/FM Stereo Radio Remote Control Assembly

Callout

Component Name

Preliminary Procedures
Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .

AM/FM Stereo Radio Remote Control Assembly
