Installation Procedure

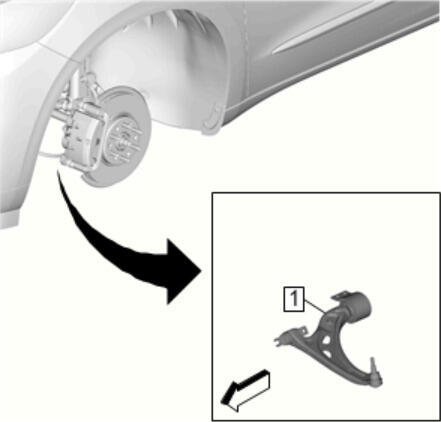

Position the front lower control arm (1) on the vehicle.
CAUTION:
This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

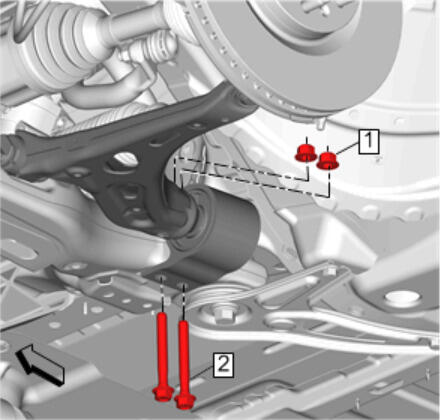

Front Lower Control Arm Rear Bolt (2) - Install [2x]

Install NEW bolts.
Front Lower Control Arm Rear Nut (1) - Install, but do NOT tighten [2x]
CAUTION:
Refer to Fastener Caution .

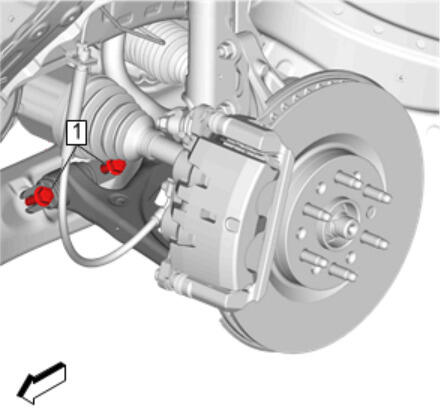

Front Lower Control Arm Front Bolt (1) - Install and tighten [2x]

Install NEW bolts.

Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90 - 105 degrees)
Front Lower Control Arm Rear Bolt (2) - Tighten [2x]

Tighten
1. First Pass: 100 N.m (74 lb ft)
2. Final Pass: (90 - 105 degrees)

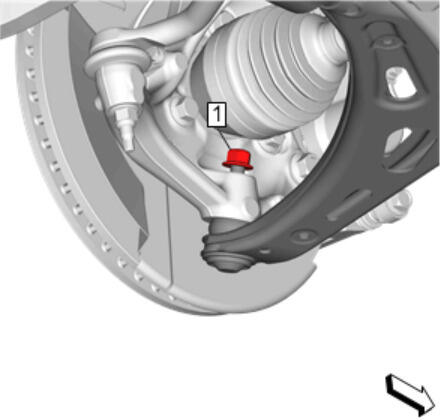

Front Lower Control Arm Ball Stud Nut (1) - Install and tighten

Tighten
1. First Pass: 40 N.m (30 lb ft)
2. Final Pass: (100 - 115 degrees)

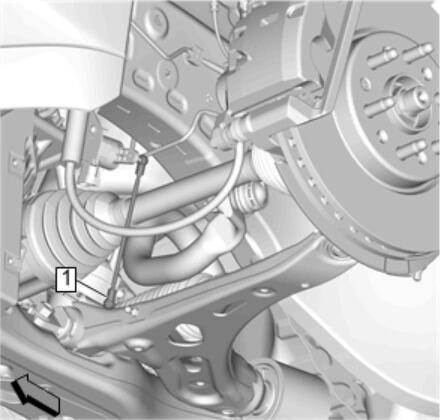

{ If equipped } Front Suspension 4 Corner Leveling System Position Sensor (1) @ Front Lower Control Arm - Install - Front Suspension 4 Corner Leveling System Position Sensor Replacement
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Measure and adjust the wheel alignment. Wheel Alignment Measurement
