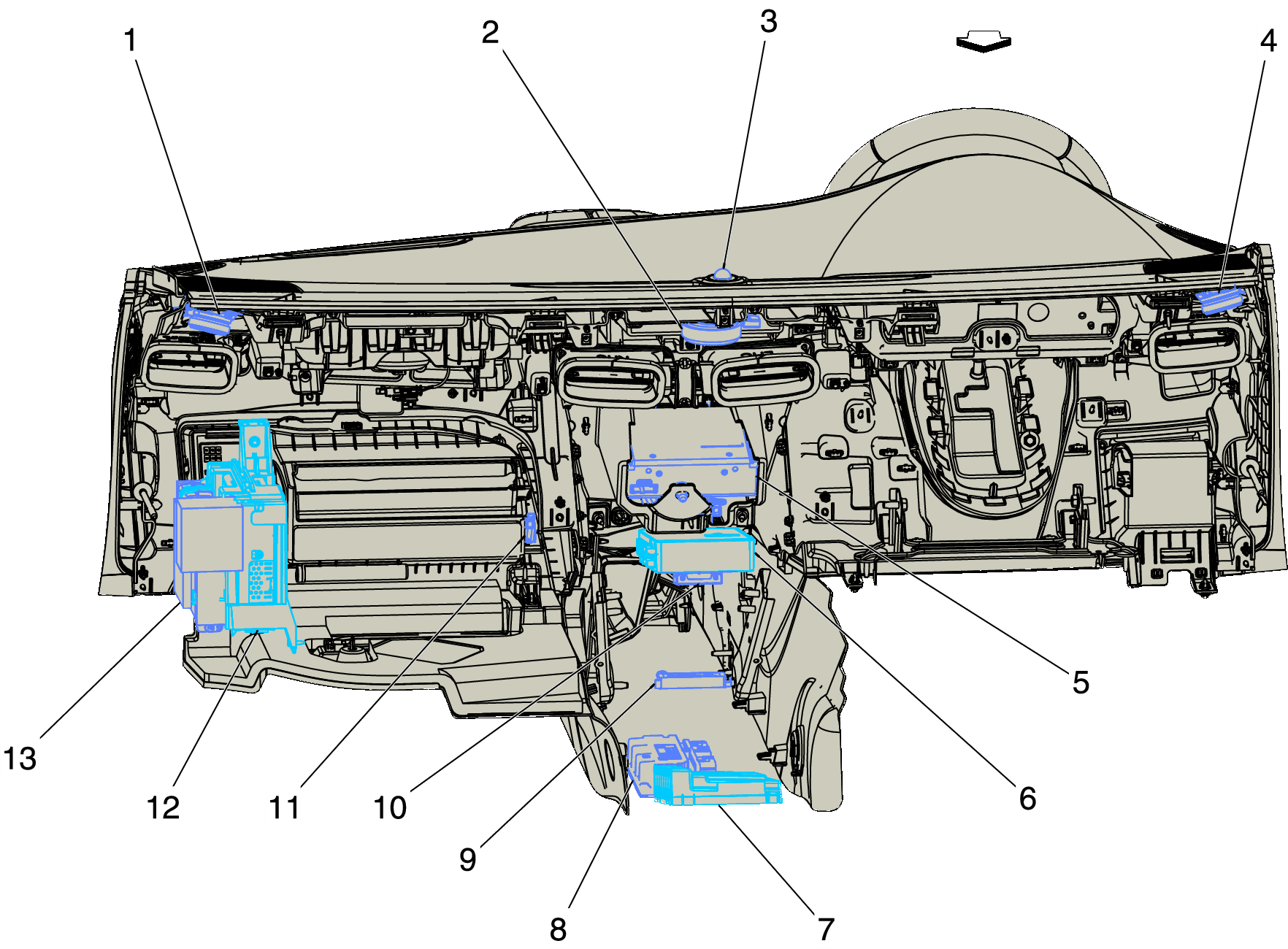

Instrument Panel - Rear View

Courtesy of GENERAL MOTORS COMPANY

Items
1. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter (UQA)P19V Speaker - Right Front Tweeter (UZ6)
2. P19B Speaker - Center Instrument Panel (UQA) P19B Speaker - Center Instrument Panel (UQA)
3. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
4. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter (UQA)P19H Speaker - Left Front Tweeter (UZ6)
5. K188 Human Machine Interface Control Module Bypass Module K188 Human Machine Interface Control Module Bypass Module X1 K188 Human Machine Interface Control Module Bypass Module X2 K188 Human Machine Interface Control Module Bypass Module X3
6. K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 K73 Telematics Communication Interface Control Module X5 K73 Telematics Communication Interface Control Module X7
7. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
8. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 K36 Inflatable Restraint Sensing and Diagnostic Module X2
9. T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
10. T15 Navigation Antenna Signal Splitter (IO6) T15 Navigation Antenna Signal Splitter X1 T15 Navigation Antenna Signal Splitter X2 T15 Navigation Antenna Signal Splitter X3
11. S35 Instrument Panel Compartment Lamp Switch S35 Instrument Panel Compartment Lamp Switch
12. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X3 (UZ6)A11 Radio X4 A11 Radio X6 (U2K)
13. K74 Human Machine Interface Control Module K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 (IO5/IO6)K74 Human Machine Interface Control Module X4 K74 Human Machine Interface Control Module X5 K74 Human Machine Interface Control Module X7
