K188 Human Machine Interface Control Module Bypass Module X1
 Courtesy of GENERAL MOTORS COMPANY
|

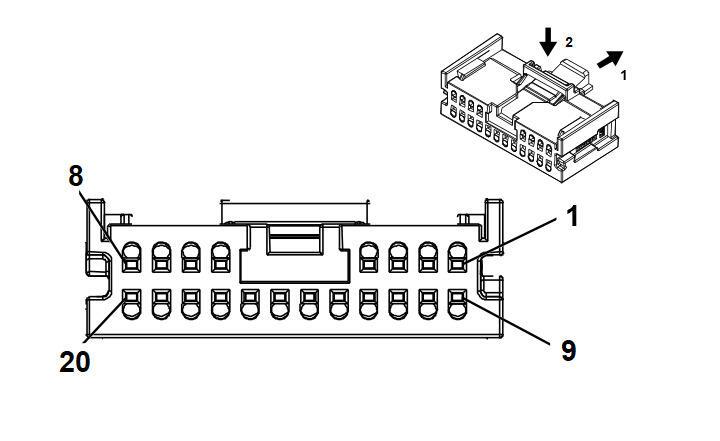

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13596105
- Service Connector: 13596105
- Description: 20-Way F Mini 50 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/YE |
5040 |
Battery Positive Voltage |
I |
- |
| 2 |
0.35 |
VT |
801 |
Retained Accessory Power Fuse Control |
I |
- |
| 3 |
0.35 |
GN/WH |
7527 |
Local Interconnect Network Serial Data Bus 5 |
I |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
BK |
1750 |
Ground |
I |
- |
| 6 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
I |
- |
| 7 |
0.35 |
BARE |
6974 |
Camera Low Reference |
I |
- |
| 8 |
0.35 |
GY/YE |
6972 |
Camera Signal 2 + |
I |
- |
| 9 |
0.35 |
GN/WH |
1324 |
Backup Lamp Control |
I |
- |
| 10 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
I |
- |
| 19 |
0.35 |
BARE |
6974 |
Camera Low Reference |
I |
- |
| 20 |
0.35 |
WH/BU |
6973 |
Camera Signal 2 |
I |
- |
