Removal Procedure
- Drain the cooling system. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)

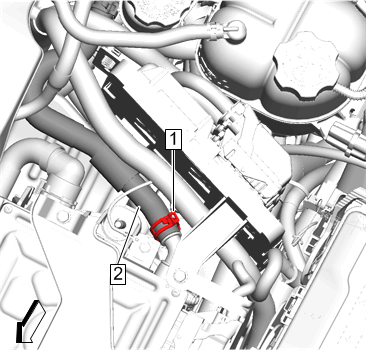

Generator Control Module Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Generator Control Module Coolant Hose (2) @ Generator Control Module - Remove

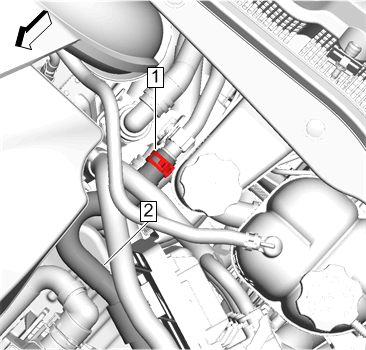

Generator Control Module Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Generator Control Module Coolant Hose (2) @ Generator Control Module Coolant Hose - Remove
- Generator Control Module Coolant Hose (2) - Remove
