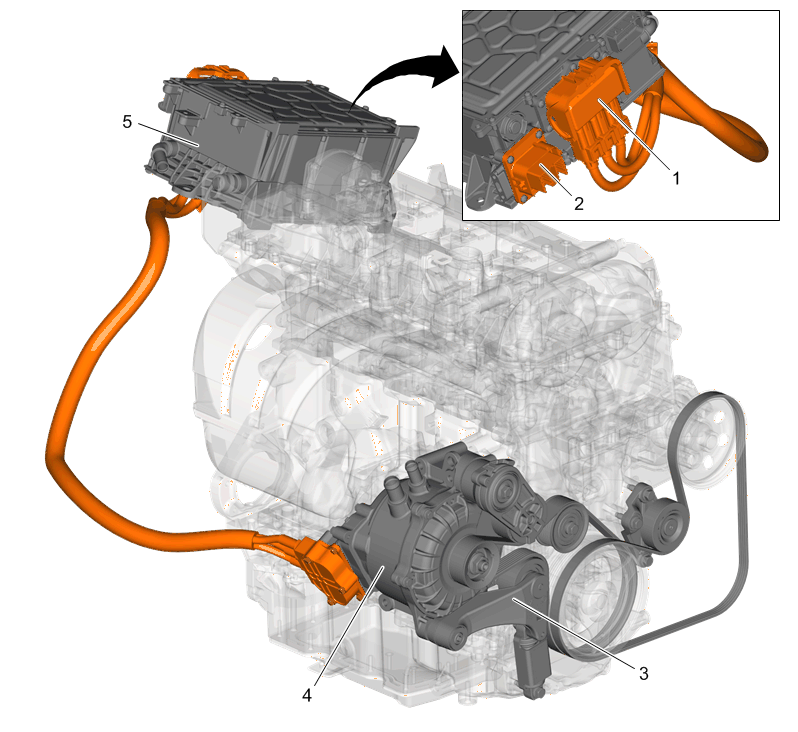

Starter/Generator, K59 Starter/Generator Control Module, and Components
Callout
Component Name
1
High Voltage 3 Phase AC Connector
2
High Voltage DC Connector
3
Drive Belt Tensioner
4
A15 Starter/Generator
5
K59 Starter/Generator Control Module
