Installation Procedure

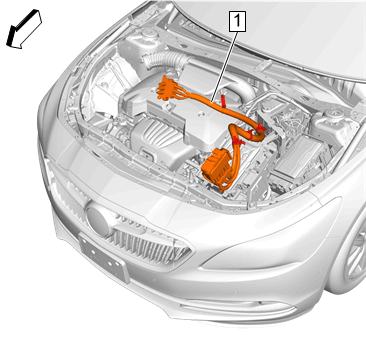

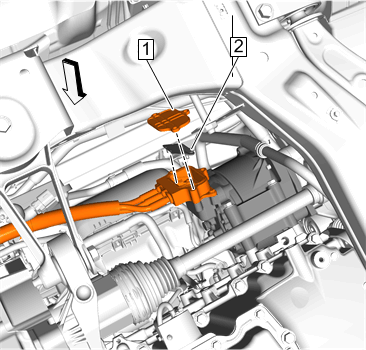

Generator Control Module 3-Phase Cable (1) - Install

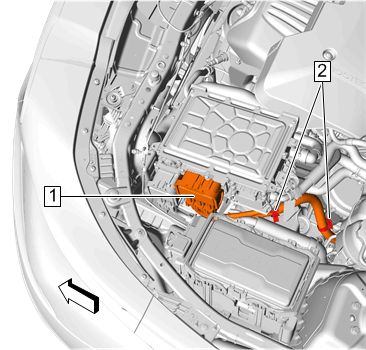

High Voltage Electrical Connector (1) - Connect
- Retainer (2) - Engage [2x]

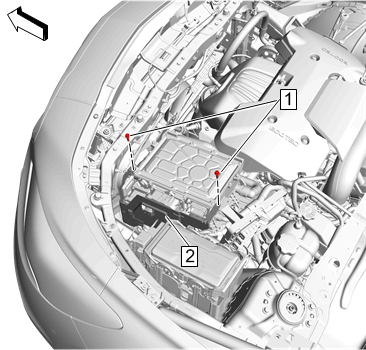

Drive Motor Power Inverter Module Shield (2) - Install - Drive Motor Power Inverter Module Shield Replacement
- Raise and support the vehicle.

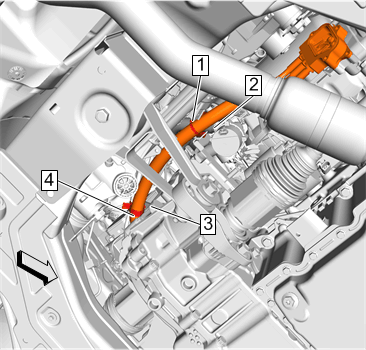

Retainer (4) @ Automatic Transmission Range Selector Actuator Bracket (3) - Engage
- Retainer Clip (1) @ Heater Coolant Pump Hose (2) - Engage

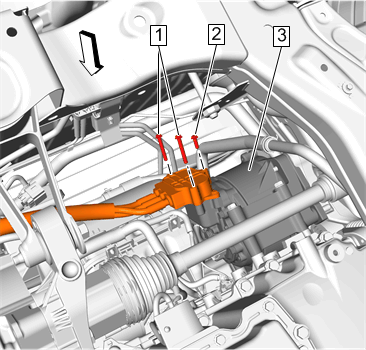

Generator Control Module 3-Phase Cable (2) - Install
- Generator Control Module Cable Housing Bolt (1) - Hand tighten [2x]

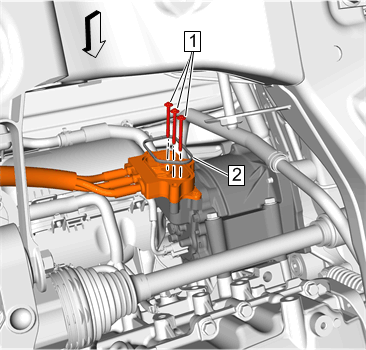

Generator Control Module 3-Phase Cable Bolt (1) - Loosely install [3x]
- Generator Control Module 3-Phase Cable Cover Seal (2) - Install
- CAUTION:
Refer to Fastener Caution

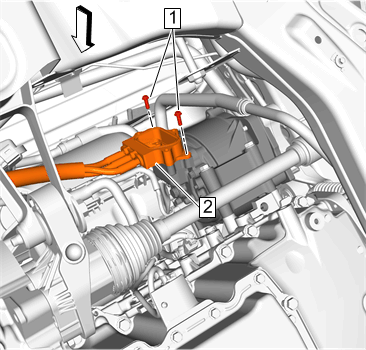

Generator Control Module Cable Housing Bolt (1) - Tighten [2x] 9 N.m (80 lb in)
-
Courtesy of GENERAL MOTORS COMPANY

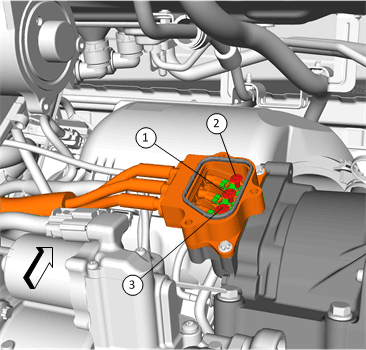

Generator Control Module 3-Phase Cable Bolt - Tighten in the sequence shown. [3x] 8 N.m (71 lb in)
Terminal Insulator (2) - Install
- Generator Control Module 3-Phase Cable Cover (1) - Install
Generator Control Module Cable Cover Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
- Generator Control Module Cable Cover Bolt (2) - Install and tighten 9 N.m (80 lb in)
- Enable the high voltage system. High Voltage Enabling
