Window Systems Component Views

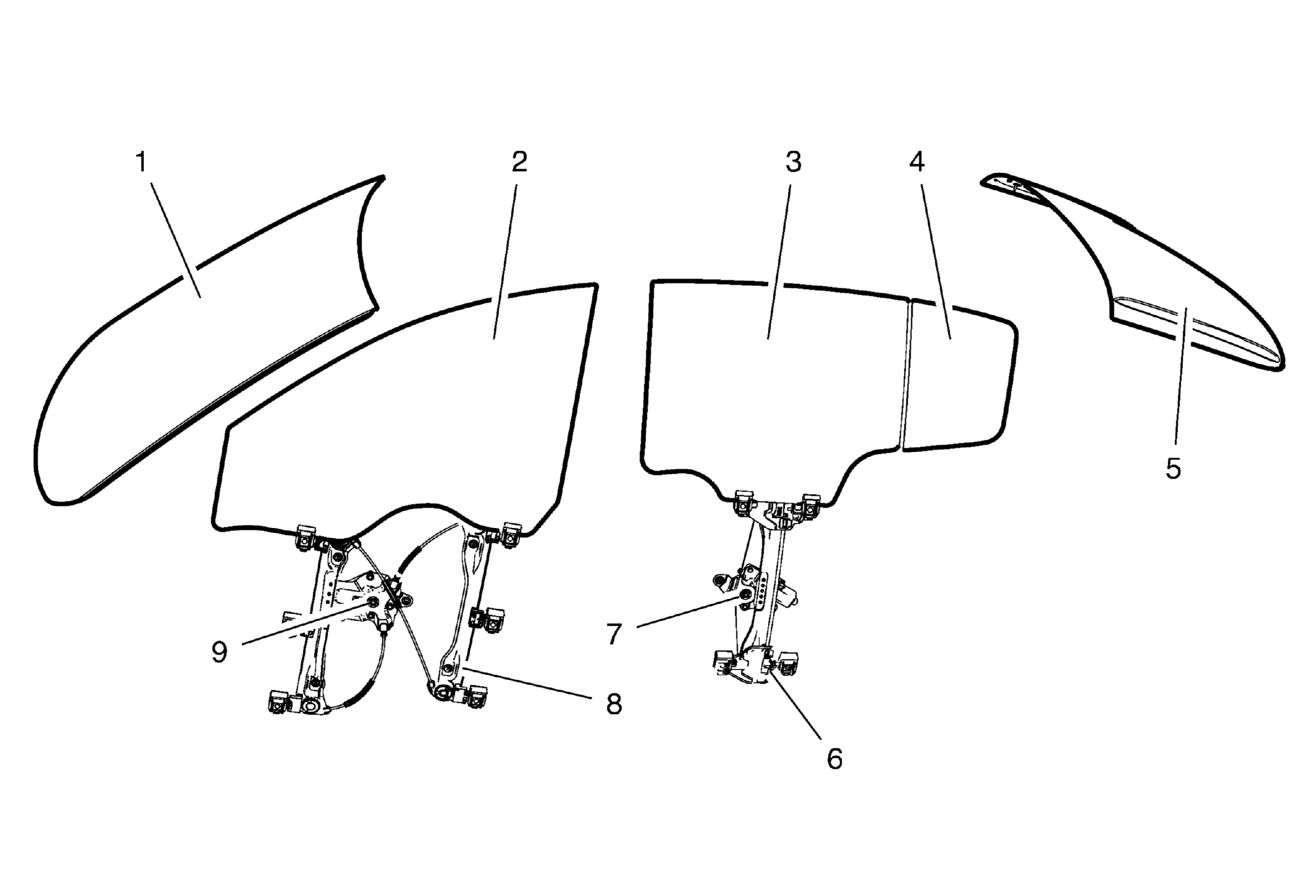

Fig 1: Exploded View Of Window Systems Components
GM2543387Courtesy of GENERAL MOTORS COMPANY
Number Description Procedure
1 Windshield Windshield Replacement
2 Front Side Door Window Front Side Door Window Replacement
3 Rear Side Door Window Rear Side Door Window Replacement
4 Quarter Window Quarter Window Replacement
5 Rear Window Rear Window Replacement
6 Rear Side Door Window Regulator Rear Side Door Window Regulator Replacement
7 Rear Side Door Window Regulator Motor Rear Side Door Window Regulator Motor Replacement
8 Front Side Door Window Regulator Front Side Door Window Regulator Replacement
9 Front Side Door Window Regulator Motor Front Side Door Window Regulator Motor Replacement
