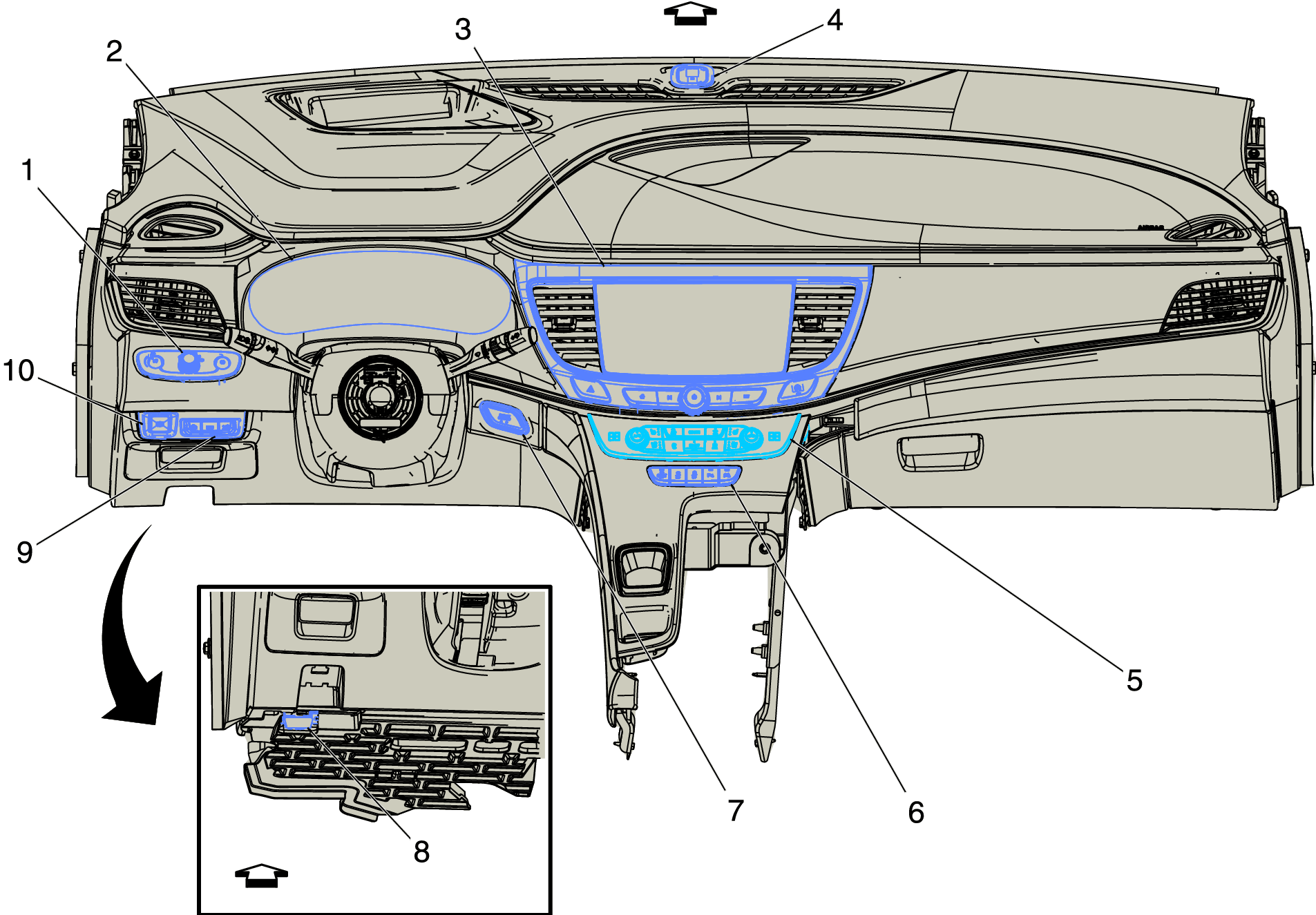

Front of the Instrument Panel Components
Front of the Instrument Panel Components
| Items |
|---|
| 1. S30 Headlamp Switch S30 Headlamp Switch |
| 2. P16 Instrument Cluster P16 Instrument Cluster X1P16 Instrument Cluster X2 |
| 3. P17 Info Display Module P17 Info Display Module X1P17 Info Display Module X2 |
| 4. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 5. A26 HVAC Controls A26 HVAC Controls |
| 6. S48A Multifunction Switch - Instrument Panel S48A Multifunction Switch - Instrument Panel |
| 7. S38 Ignition Mode Switch S38 Ignition Mode Switch |
| 8. X84 Data Link Connector X84 Data Link Connector |
| 9. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch (UV6) |
| 10. S91 Park Brake Control Switch S91 Park Brake Control Switch |
