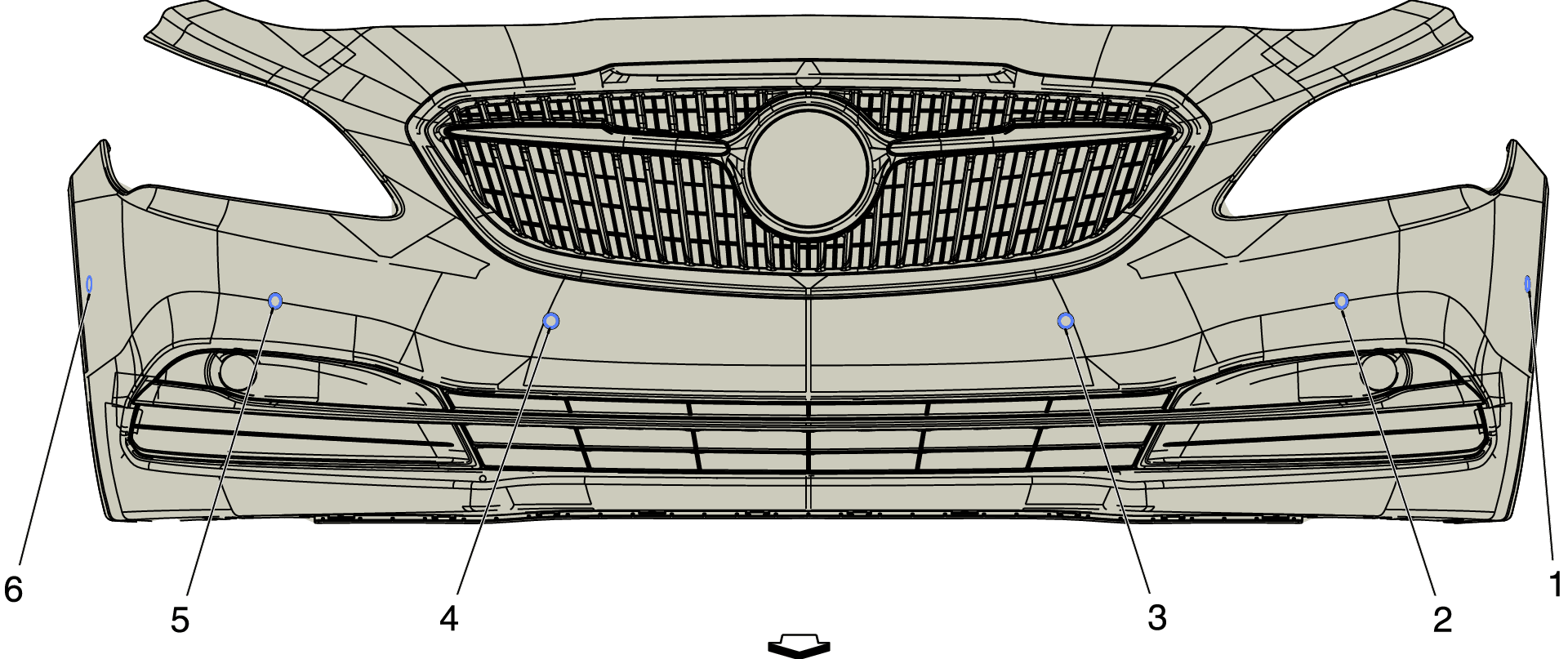

Front of the Vehicle Components

GM4318982
Front of the Vehicle Components

Items
1. B306K Parking Assist Sensor - Side Left Front (UFQ) B306K Parking Assist Sensor - Side Left Front (UFQ)
2. B306A Parking Assist Sensor - Front Left Outer (UFQ) B306A Parking Assist Sensor - Front Left Outer (UFQ)
3. B306B Parking Assist Sensor - Front Left Middle (UFQ) B306B Parking Assist Sensor - Front Left Middle (UFQ)
4. B306C Parking Assist Sensor - Front Right Middle (UFQ) B306C Parking Assist Sensor - Front Right Middle (UFQ)
5. B306D Parking Assist Sensor - Front Right Outer (UFQ) B306D Parking Assist Sensor - Front Right Outer (UFQ)
6. B306L Parking Assist Sensor - Side Right Front (UFQ) B306L Parking Assist Sensor - Side Right Front (UFQ)
