Communication Interface Module Battery Replacement (IOR, IOS, IOT)

Courtesy of GENERAL MOTORS COMPANY

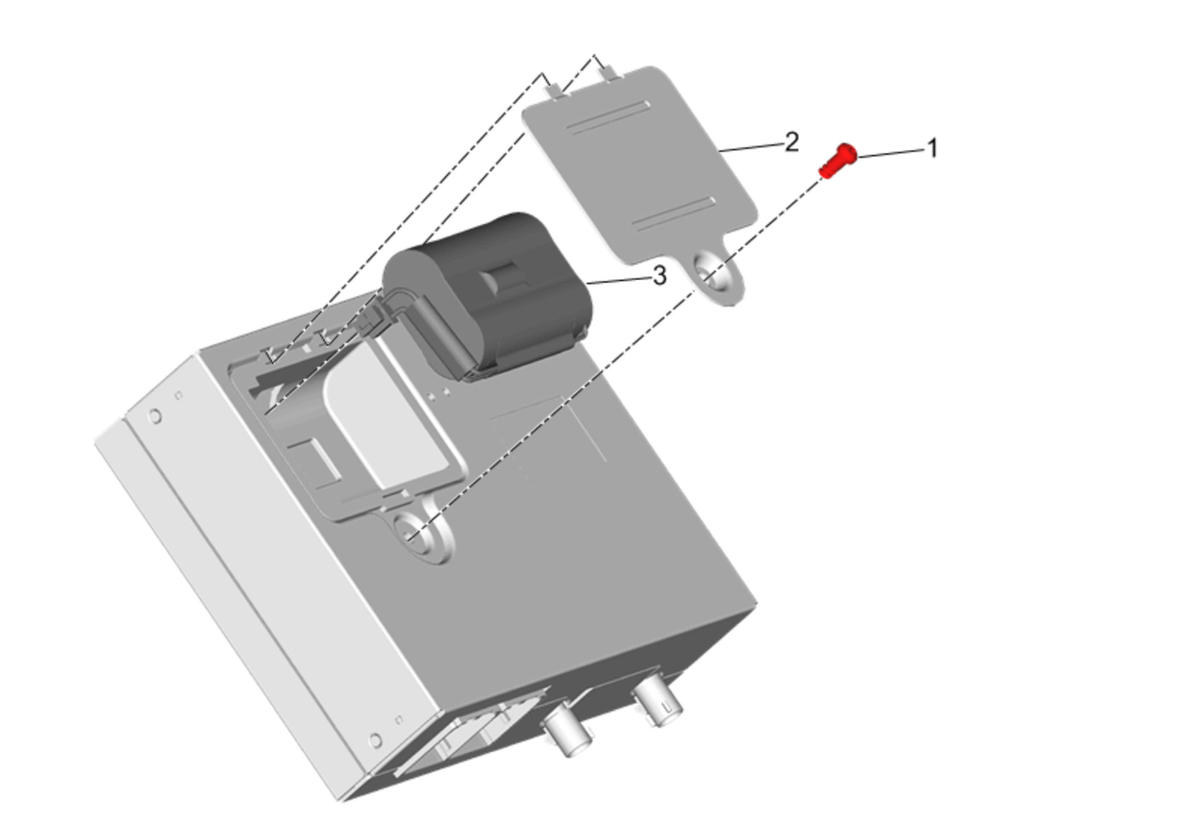

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Communication Interface Module Replacement
1	Communication Interface Module Battery Cover Bolt CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Battery Cover
3	Communication Interface Module Battery
