Blower Motor Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

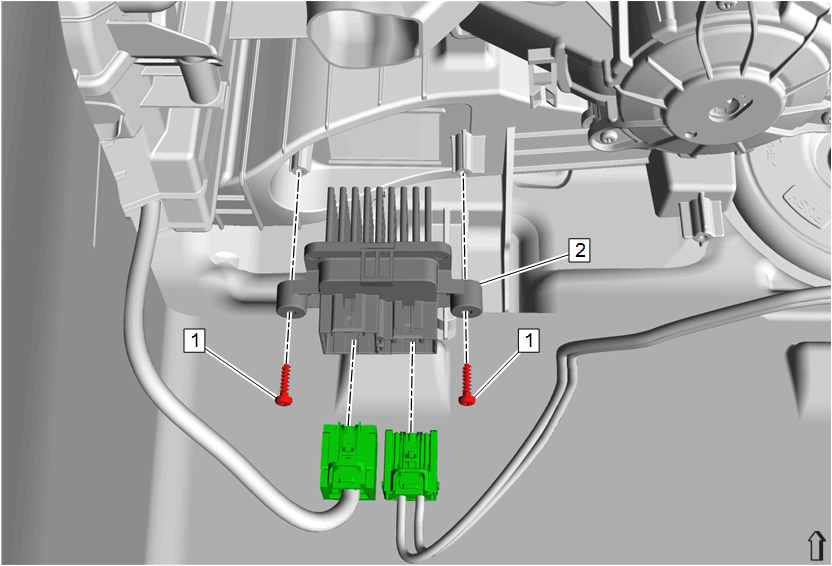

Callout	Component Name
Preliminary Procedures BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (3.6L LGX) or BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION (2.0L LTG) Instrument Panel Lower Trim Panel Insulator Replacement
1	Blower Motor Control Module Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Blower Motor Control Module Procedure Disconnect the electrical connectors. Control Module References - Programming and Setup

Callout

Component Name

Preliminary Procedures

Blower Motor Control Module Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Blower Motor Control Module

Procedure
