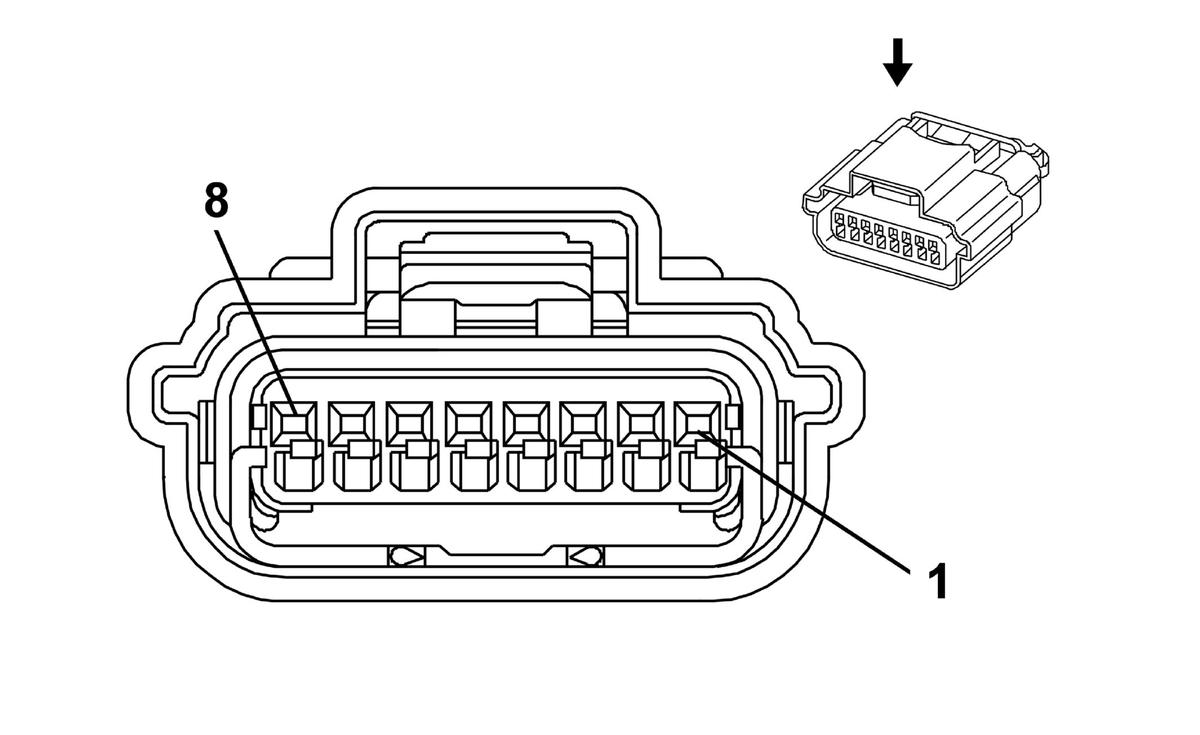

B218L Side Object Sensor Module - Left (UKC)
|
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 13591765
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 0.64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 2 - 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.5 |
BU/WH |
3812 |
High Speed GMLAN Serial Data (+) 5 |
I |
- |
| 5 |
0.5 |
BU/YE |
3810 |
High Speed GMLAN Serial Data (-) 5 |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
BK |
2750 |
Ground |
I |
- |
| 8 |
0.5 |
RD/GN |
5140 |
Battery Positive Voltage |
I |
- |
