Home >> Buick >> 2018 >> Regal Base >> Repair and Diagnosis >> Accessories & Equipment >> Anti-Theft Systems >> Keyless Entry System And Remote Functions >> Schematic Wiring Diagrams >> Remote Function Wiring Schematics >> Keyless Entry - Passive and Keyless Start (BTM)

April 5, 2026: LEMON Manuals is launched! Read the announcement.

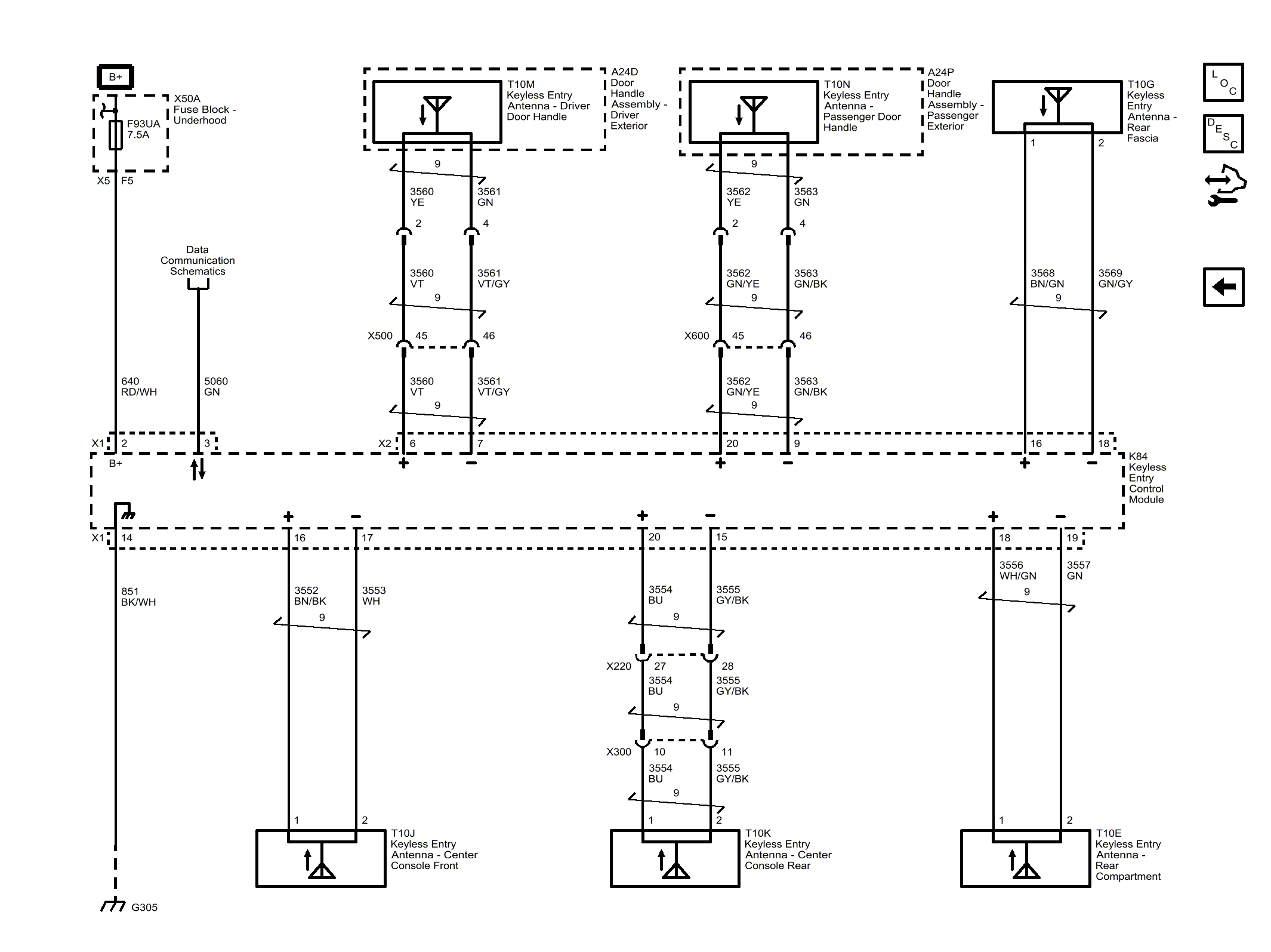

Keyless Entry - Passive and Keyless Start (BTM)

GM4776611
