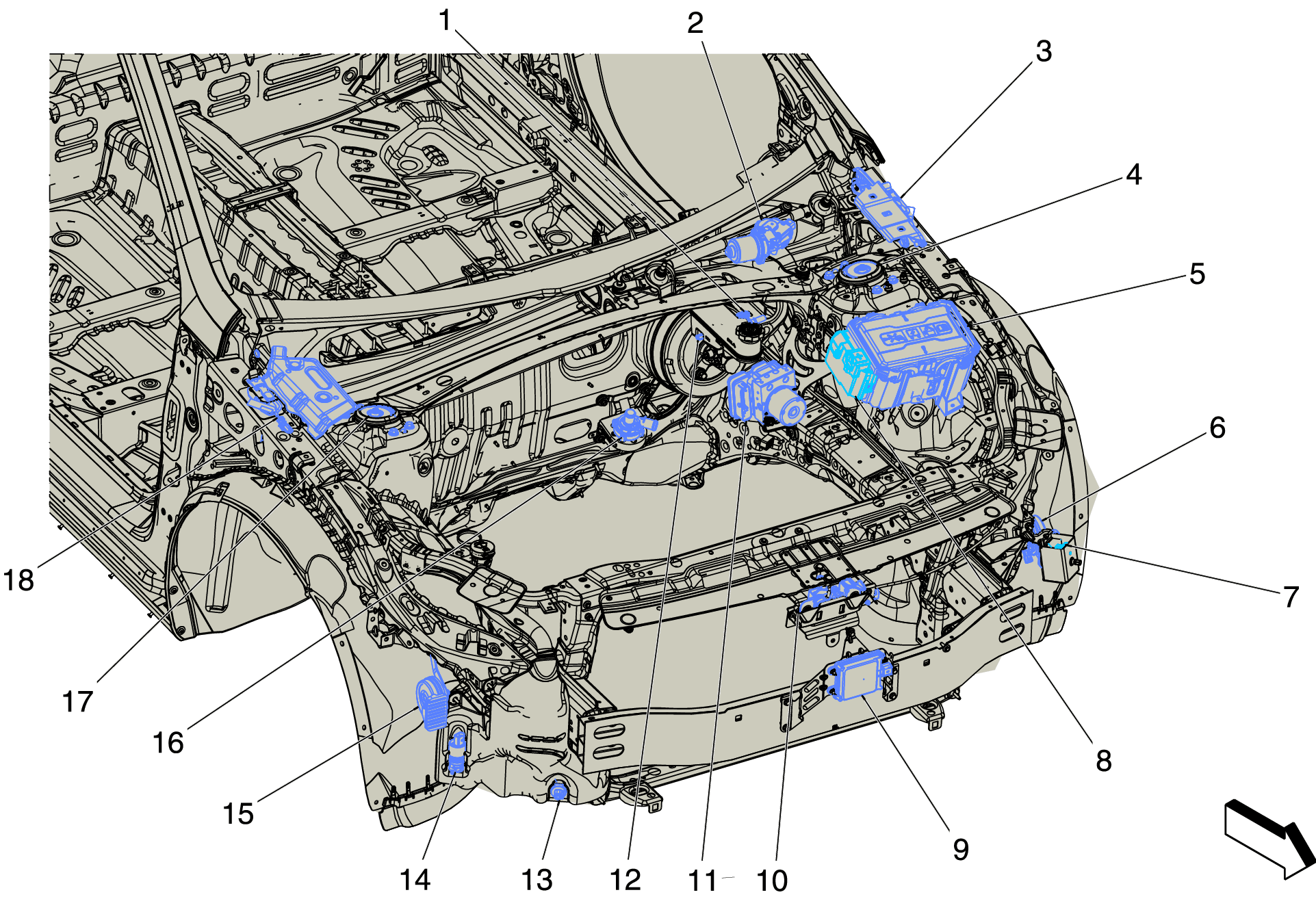

Engine Compartment Components

Items
1 B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
2 M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3 F100L Hood Hinge Actuator - Left F100L Hood Hinge Actuator - Left (B3T)
4 Q37LF Shock Absorber Actuator - Left Front (F45) Q37LF Shock Absorber Actuator - Left Front (F45)
5 X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 ()X50A Fuse Block - Underhood X10 X50A Fuse Block - Underhood X7 (LTG)X50A Fuse Block - Underhood X2 (LTG)X50A Fuse Block - Underhood X3 (LGX)X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5 X50A Fuse Block - Underhood X7 (LGX)X50A Fuse Block - Underhood X8 X50A Fuse Block - Underhood X9
6 P12L Horn - Left P12L Horn - Left
7 P25 Power Sounder Content Theft Deterrent Alarm Module P25 Power Sounder Content Theft Deterrent Alarm Module
8 X50D Fuse Block - Battery X50D Fuse Block - Battery X1 (LGX)X50D Fuse Block - Battery X1 (LTG)X50D Fuse Block - Battery X2 (LGX)X50D Fuse Block - Battery X2 (LTG)X50D Fuse Block - Battery X4 X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X6 (LGX)X50D Fuse Block - Battery X7 X50D Fuse Block - Battery X8
9 B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range (UGN)
10 B55 Engine Hood Switch B55 Engine Hood Switch
11 K17 Electronic Brake Control Module K17 Electronic Brake Control Module
12 B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
13 B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch
14 G24 Windshield Washer Pump G24 Windshield Washer Pump
15 P12R Horn - Right P12R Horn - Right
16 G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump
17 Q37RF Shock Absorber Actuator - Right Front (F45) Q37RF Shock Absorber Actuator - Right Front (F45)
18 F100R Hood Hinge Actuator - Right F100R Hood Hinge Actuator - Right (B3T)
