Front Floor Console Front Compartment Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

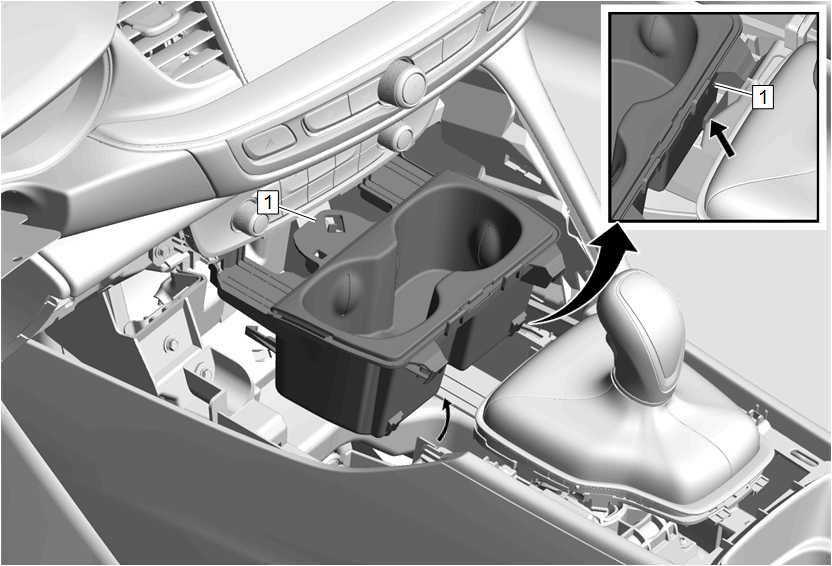

GM4645627Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Cup Holder Door Replacement
1 Front Floor Console Front Compartment

Procedure

  1. Front Floor Console Front Compartment - Front Floor Console Unclip
  2. Pull upwards then backwards to remove.
  3. Disconnect all electrical connectors.
  4. Transfer components as necessary.
