Installation Procedure

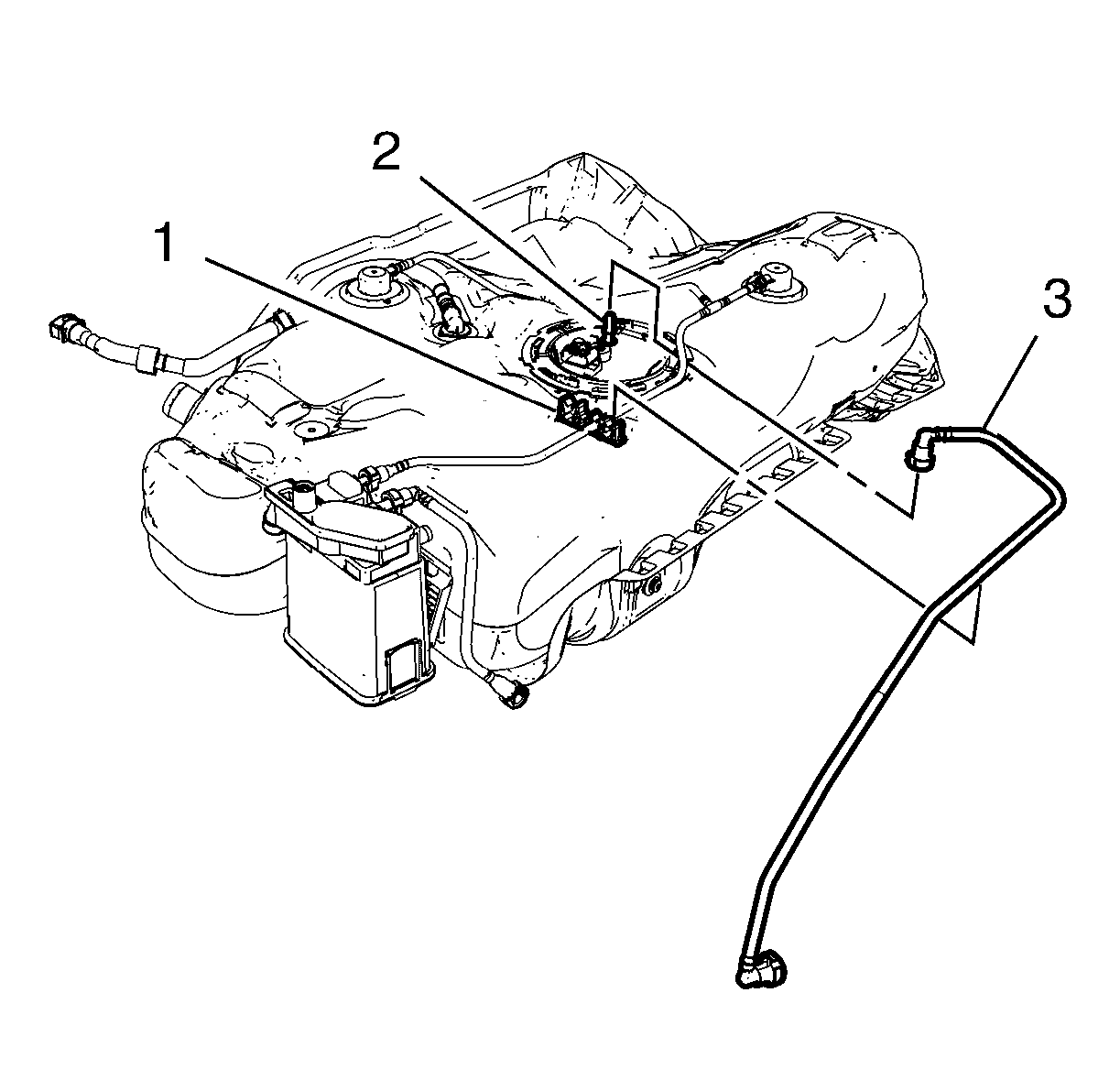

  1. GM2834317

    Connect the fuel feed pipe (3) to the fuel tank fuel pump module (2). Refer to Plastic Collar Quick Connect Fitting Service .

  2. Clip in the fuel feed pipe (3) to the retainer clip (1).
  3. - Install Fuel Tank Replacement .
