Convertible Top Front Latch Components

GM3597477Courtesy of GENERAL MOTORS COMPANY

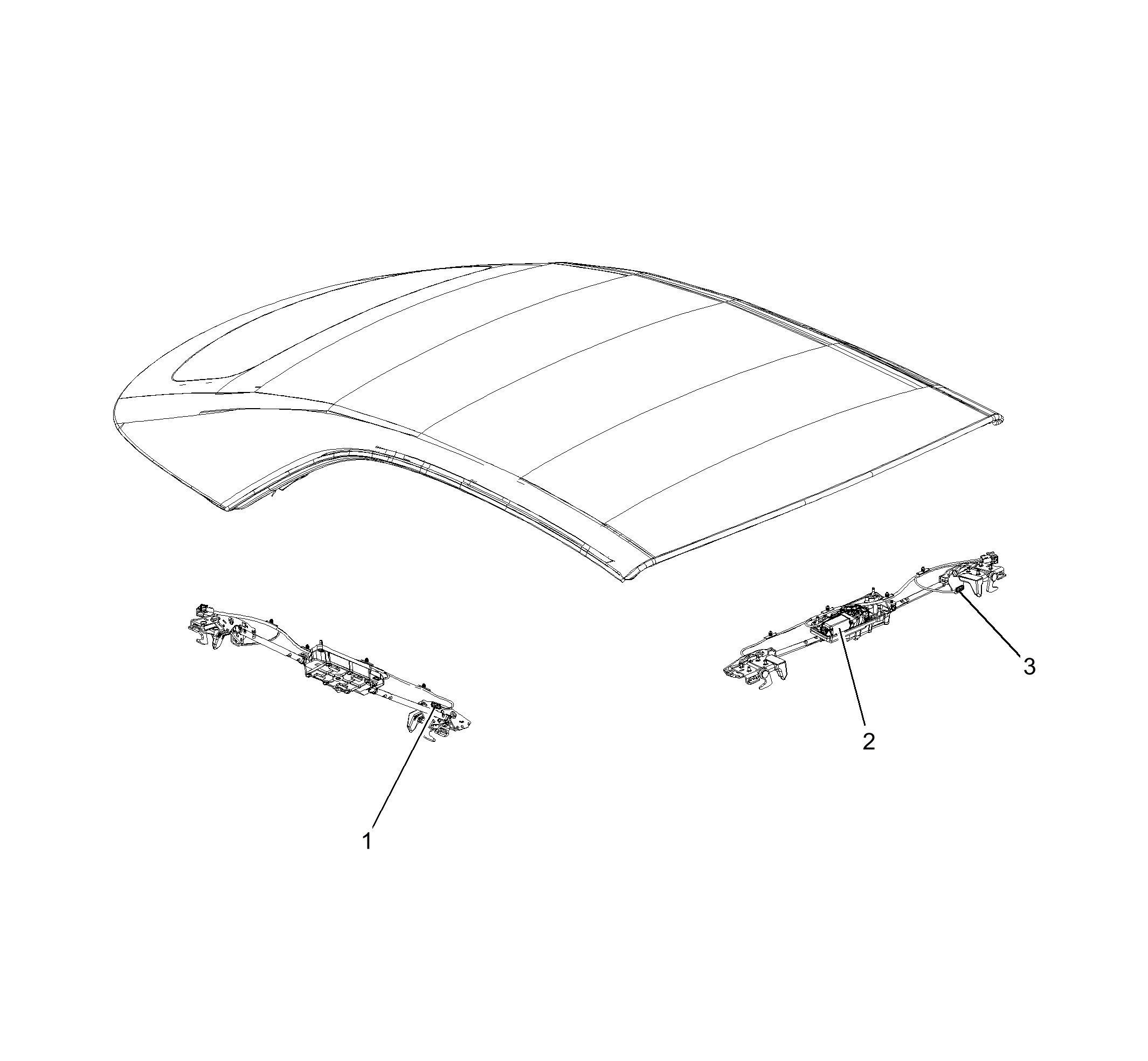

Convertible Top Front Latch Components

Items
1. B238 Folding Top Header Latch Motor Latched Position Sensor
2. M86 Folding Top Header Latch Motor M86 Folding Top Header Latch Motor
3. B239 Folding Top Header Latch Motor Unlatched Position Sensor
