Installation Procedure

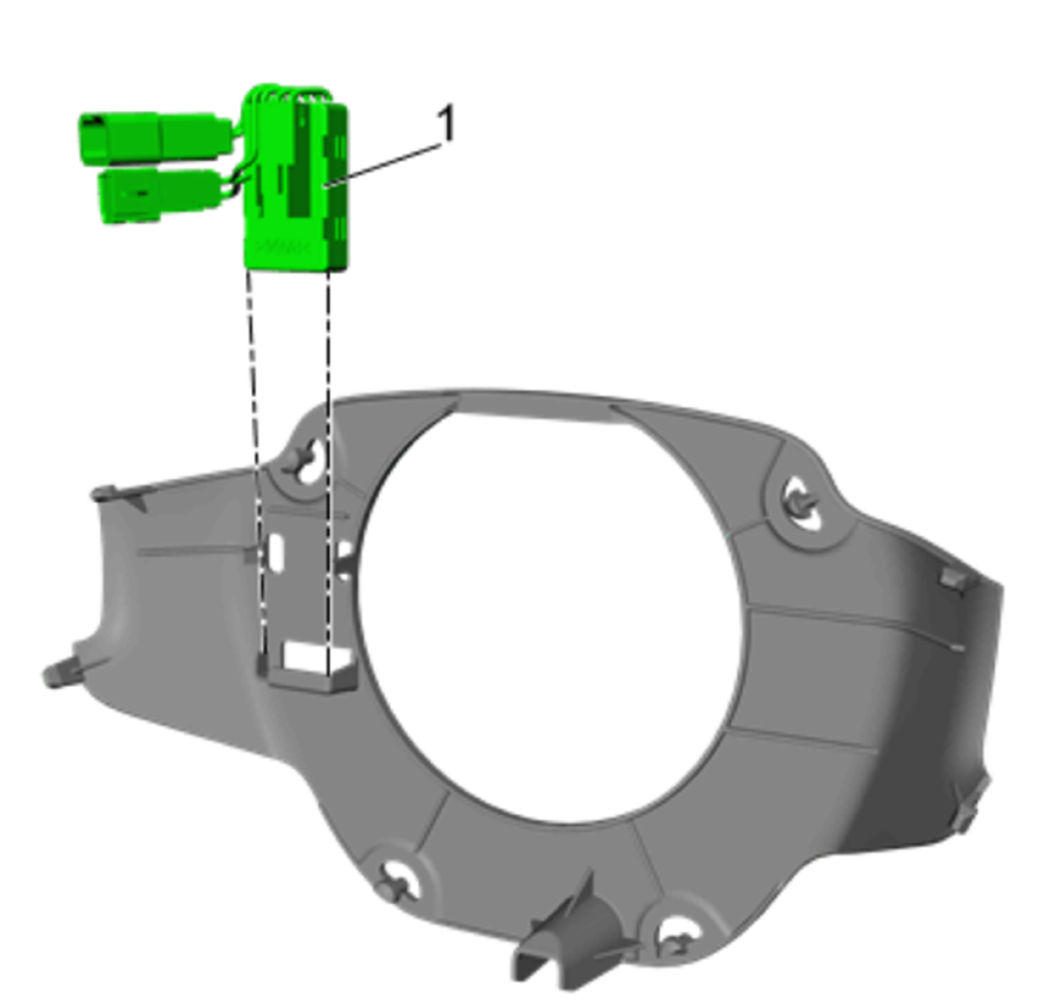

  1. GM4806862Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Heat Control Module (1) - Install

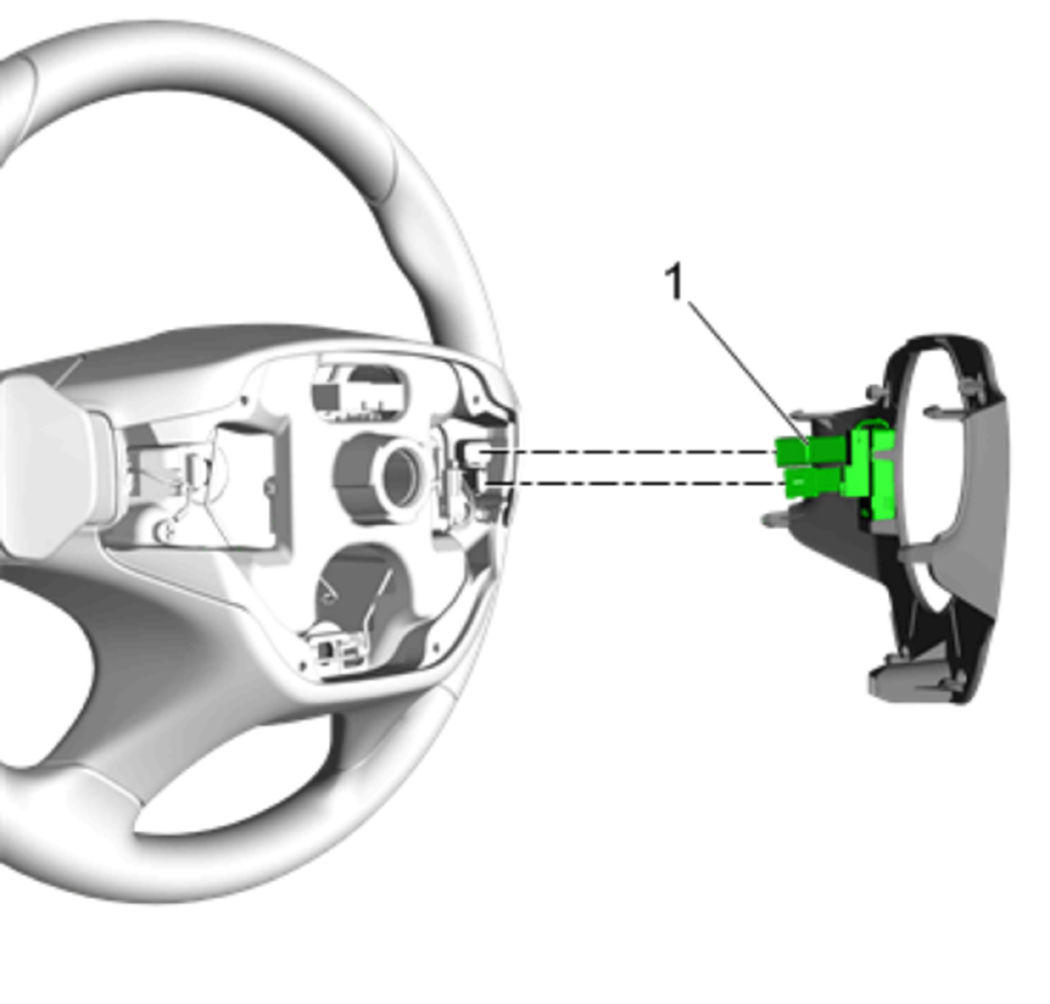

  2. GM4806864Courtesy of GENERAL MOTORS COMPANY

    Connect electrical connection (1).

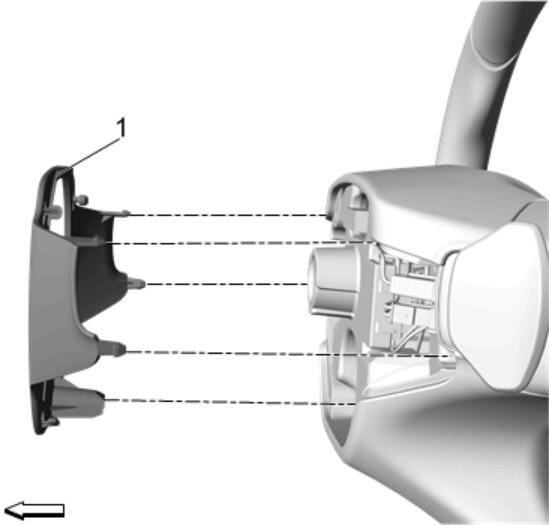

  3. GM4806246Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Shroud (1) - Install

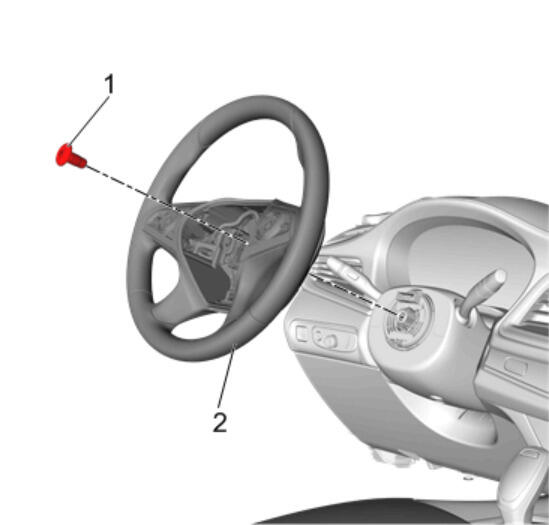

  4. GM4806049Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (2) - Install - Steering Wheel Replacement

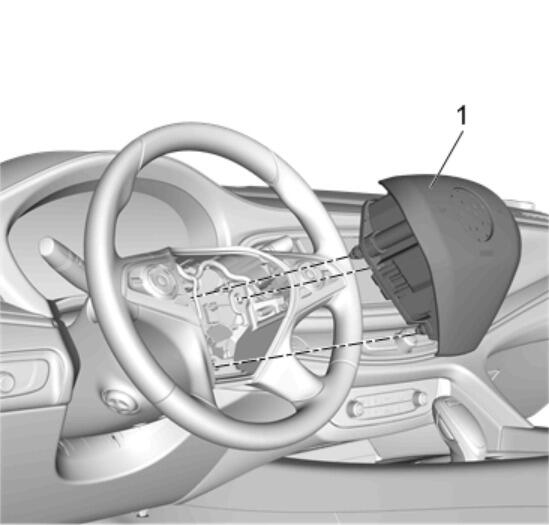

  5. GM4806796Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Airbag (1) - Install - Steering Wheel Airbag Replacement
