Liftgate Release System Components
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Body control module (BCM)
- Liftgate unlatch switch
- Liftgate latch assembly
- Liftgate unlatch relay

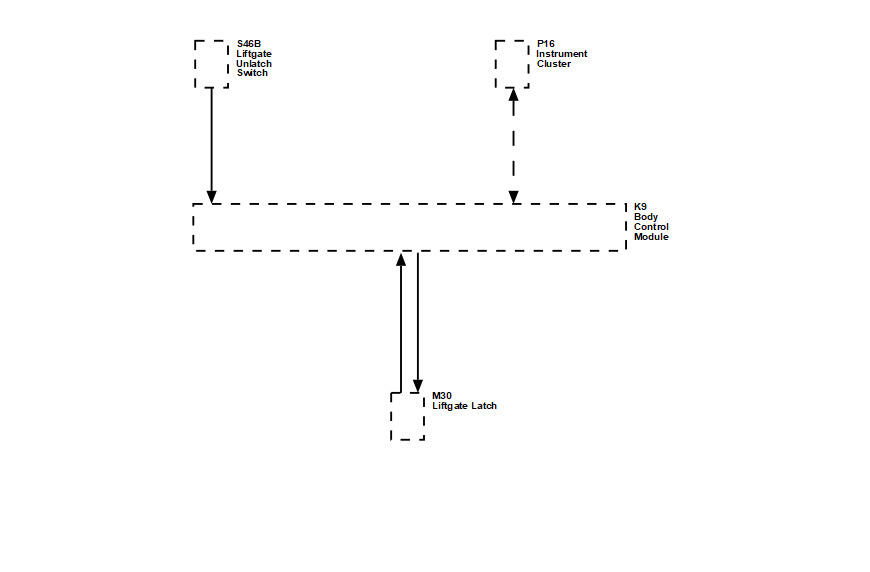

| Callout |
Component Name |
| P16 |
P16 Instrument Cluster |
| K9 |
K9 Body Control Module |
| M30 |
M30 Liftgate Latch |
| S46B |
S46B Liftgate Unlatch Switch |
