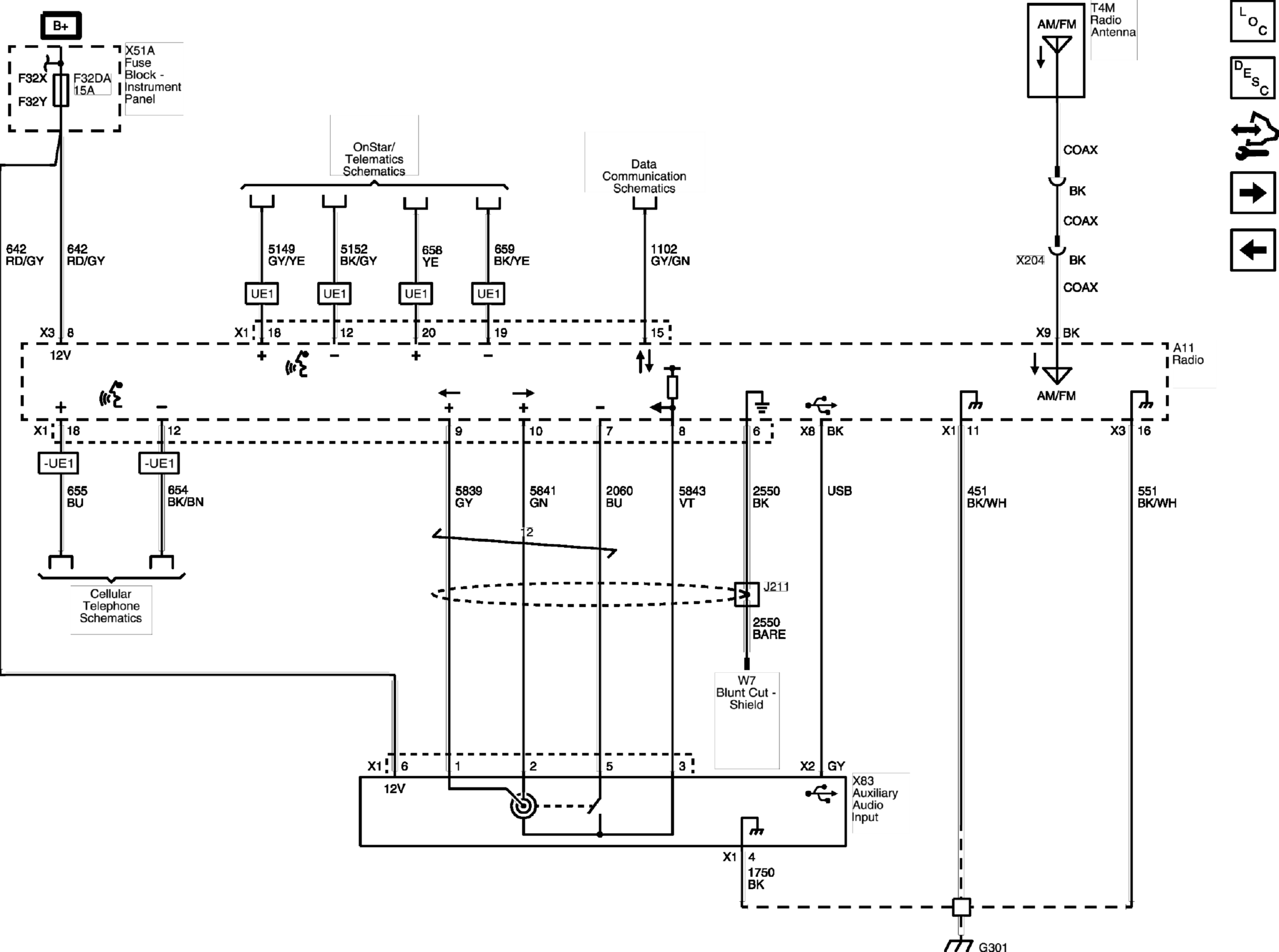

Power, Ground, Serial Data, and Audio/Video Inputs (Trax with IP1)

GM4918888

Courtesy of GENERAL MOTORS COMPANY
