Radio Replacement (Chevrolet with IP1)
WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

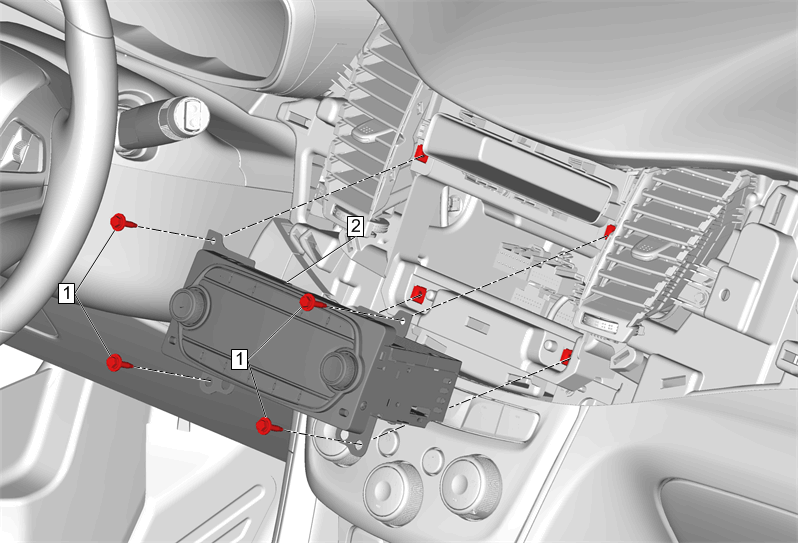

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Radio Front Trim Plate Replacement (RPO IP1, Chevrolet) |
|
| 1 | Radio Control Bolt [4x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Procedure
|
