Radio Front Speaker Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

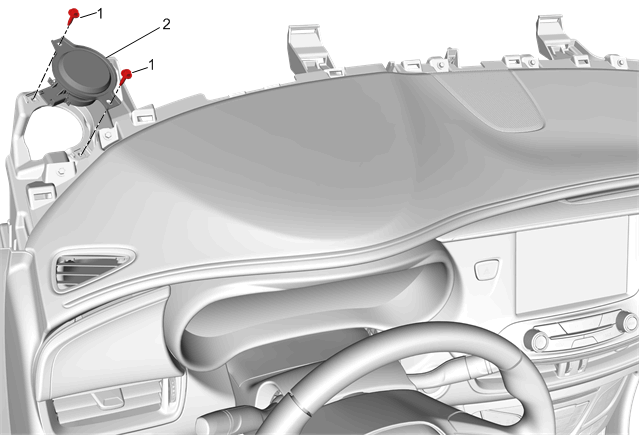

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Extension Replacement (UEU)Instrument Panel Extension Replacement (UV6) |
|
| 1 | Radio Front Speaker Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Front Speaker Procedure Disconnect the electrical connector. |
