Home >> Buick >> 2019 >> Envision Base >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

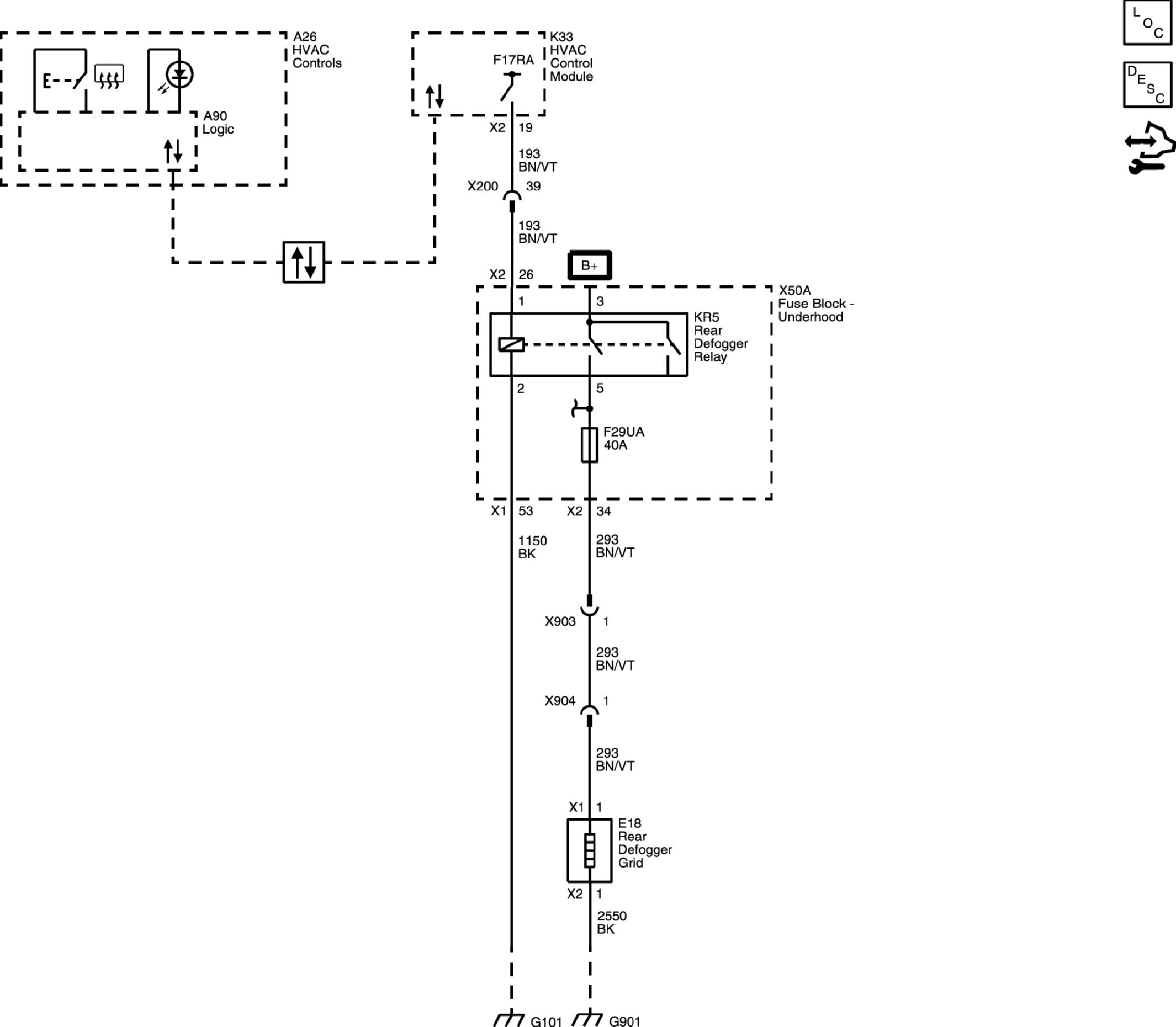

Defogger Wiring Schematics: Defogger

GM4850633Courtesy of GENERAL MOTORS COMPANY
