Communication Interface Module Battery Replacement

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

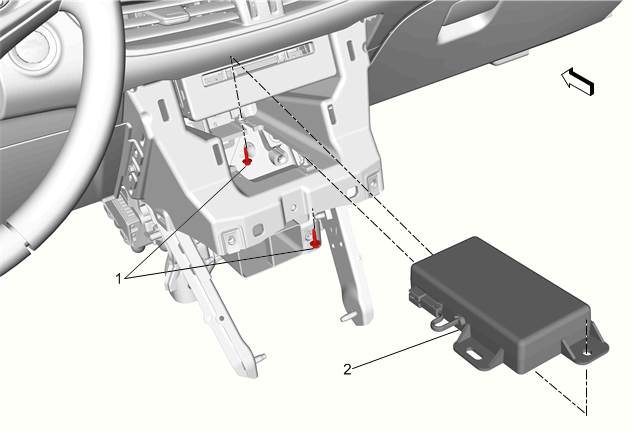

Callout	Component Name
Preliminary Procedures Communication Interface Module Bracket Replacement Instrument Panel Lower Center Trim Plate Applique Replacement
1	Communication Interface Module Battery Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Communication Interface Module Battery Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Communication Interface Module Bracket Replacement
Instrument Panel Lower Center Trim Plate Applique Replacement

Communication Interface Module Battery Fastener [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Communication Interface Module Battery
Procedure
Disconnect the electrical connector.
