Removal Procedure

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

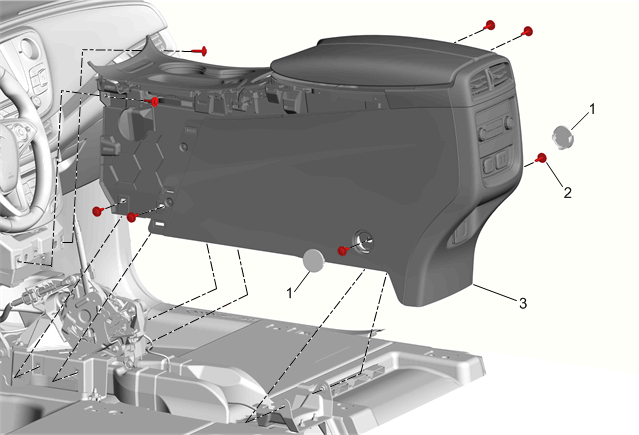

Front Floor Console (3) - Remove - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

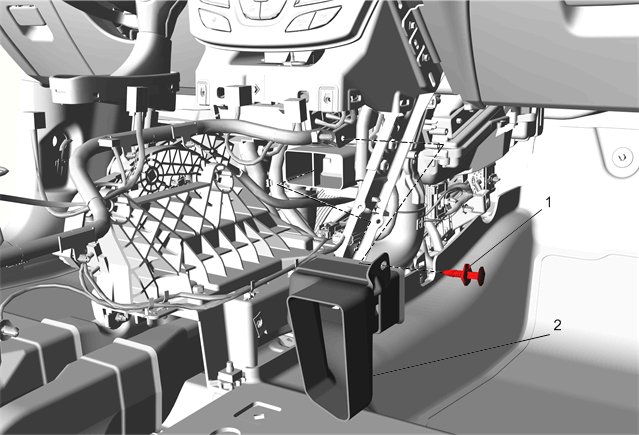

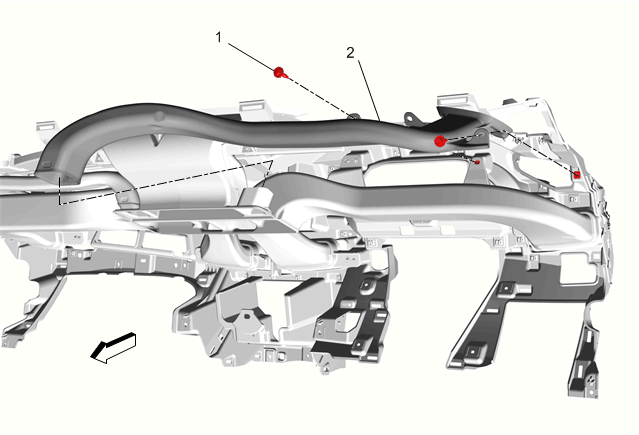

Front Floor Console Rear Air Duct-Front (2) - Remove - Front Floor Console Rear Air Duct Replacement (Front)Front Floor Console Rear Air Duct Replacement (Rear)Front Floor Console Rear Air Duct Replacement (CJ4 Rear)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet (2) - Remove - Instrument Panel Center Air Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

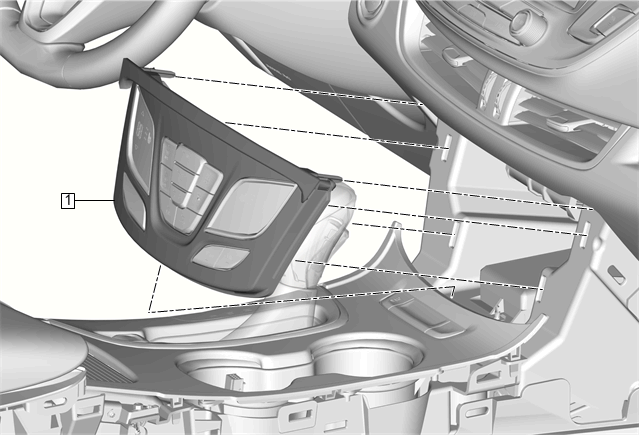

Instrument Panel Lower Center Trim Plate Applique (1) - Remove - Instrument Panel Lower Center Trim Plate Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

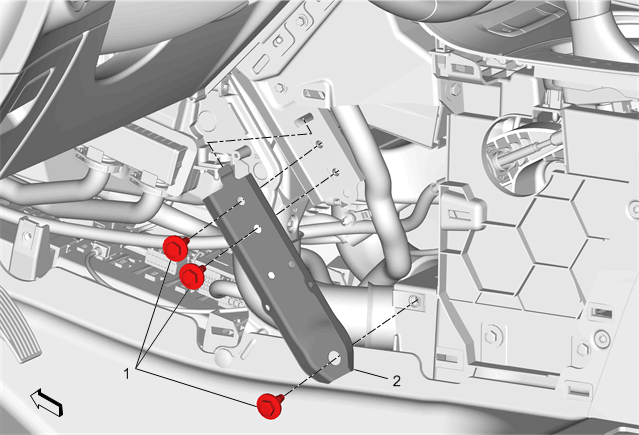

Serial Data Gateway Bracket (2) - Remove - Serial Data Gateway Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the right side instrument panel center lower bracket (2). Instrument Panel Center Lower Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

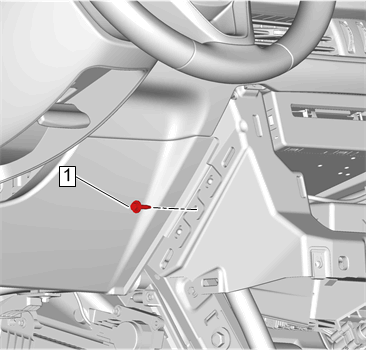

Instrument Panel Knee Bolster Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

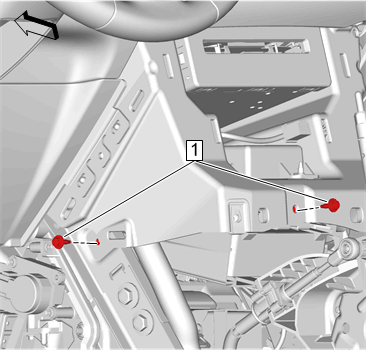

Instrument Carrier Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

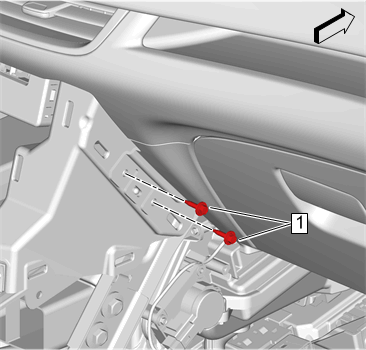

Instrument Panel Compartment Bolt (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

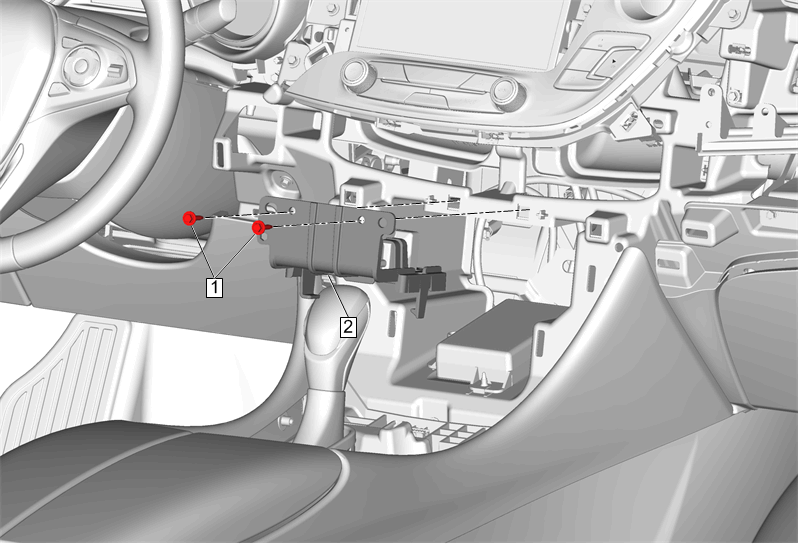

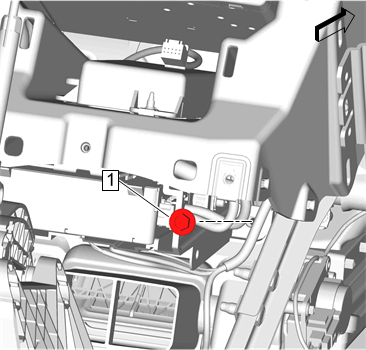

Communication Interface Module Bracket Bolt (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

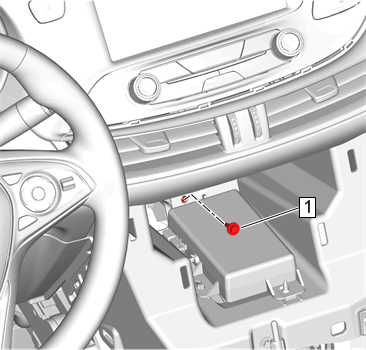

Communication Center Call Transceiver Bracket Bolt (1) - Remove
Reposition the instrument carrier to clear the communication interface module bracket.
Disconnect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

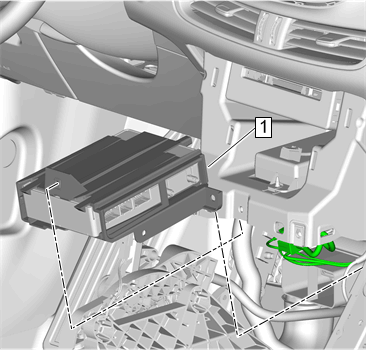

Communication Interface Module Bracket (1) - Remove
Transfer components as necessary.
