Radio Control Assembly Replacement
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.

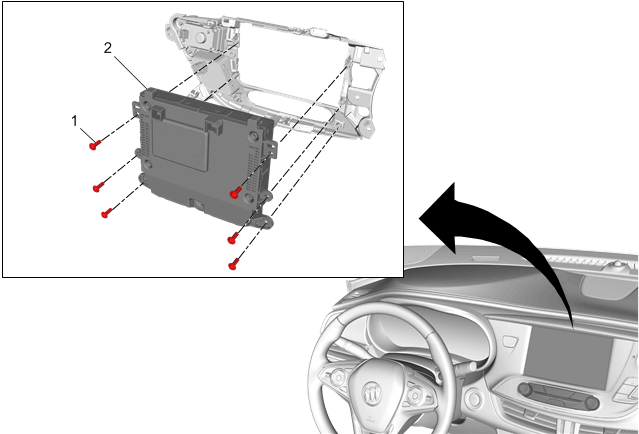

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Trim Plate Replacement |
|
| 1 | Radio Control Fastener [6x]
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Control Procedure Refer to Control Module References for programming and set up information, if required. |
