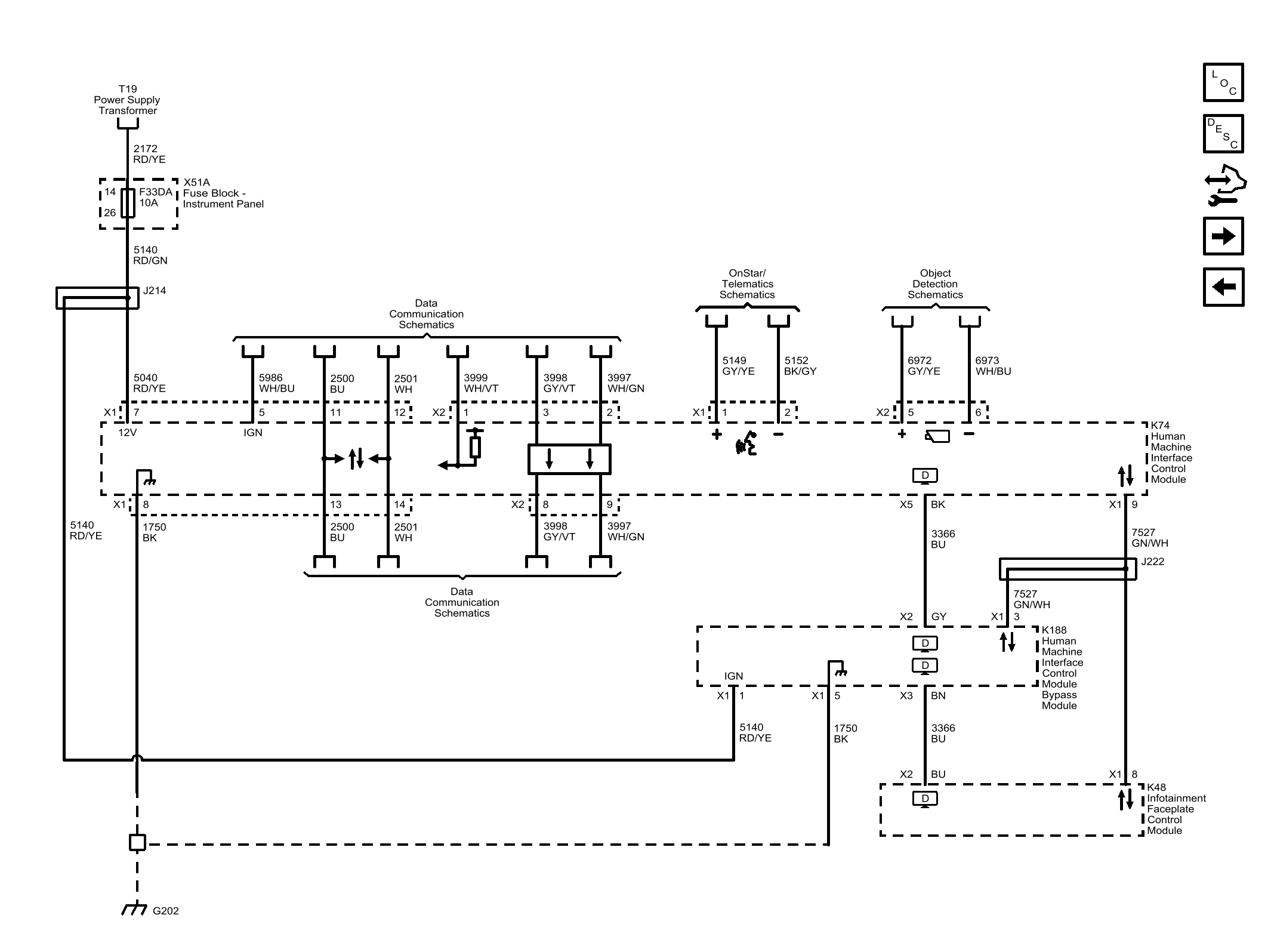

Human Machine Interface Control Module - Power, Ground, Serial Data, and Functions

WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
