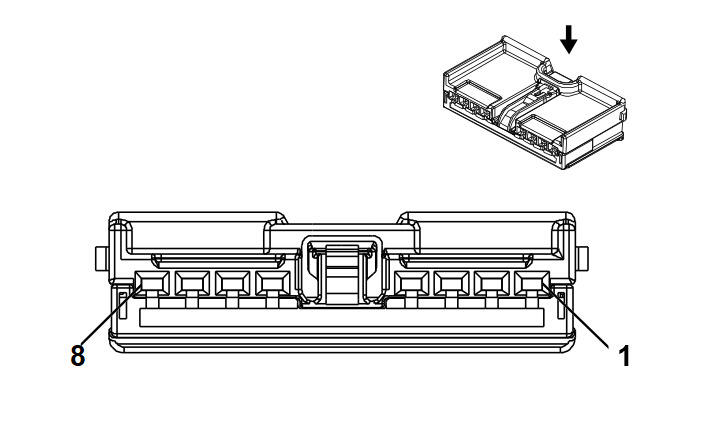

A23C Liftgate Latch Assembly (TC2)
WARNING: This page is about a different car, the 2018 Buick Envision. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 19115648
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 1.5 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-2A (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GY |
7000 |
Lift Gate Ajar Switch Signal 3 |
II |
- |
| 2 |
0.35 |
GN/BK |
5512 |
Lift Gate Open Signal |
II |
- |
| 3 |
0.35 |
VT/GY |
1303 |
Lift Gate Ajar Switch Signal 1 |
II |
- |
| 4 |
0.35 |
BU/YE |
6795 |
Lift Glass/Rear Compartment Lid Motor Release Control 2 |
II |
- |
| 5 |
0.35 |
BU/BK |
6000 |
Lift Gate Ajar Switch Signal 2 |
II |
- |
| 6 |
0.35 |
BK/VT |
5801 |
Lift Gate Object Sensor Low Reference |
II |
- |
| 7 |
1 |
BN |
5790 |
Lift Gate Cinch Latch Motor Open Control |
I |
- |
| 8 |
1 |
BU/GY |
5791 |
Lift Gate Cinch Latch Motor Close Control |
I |
- |
